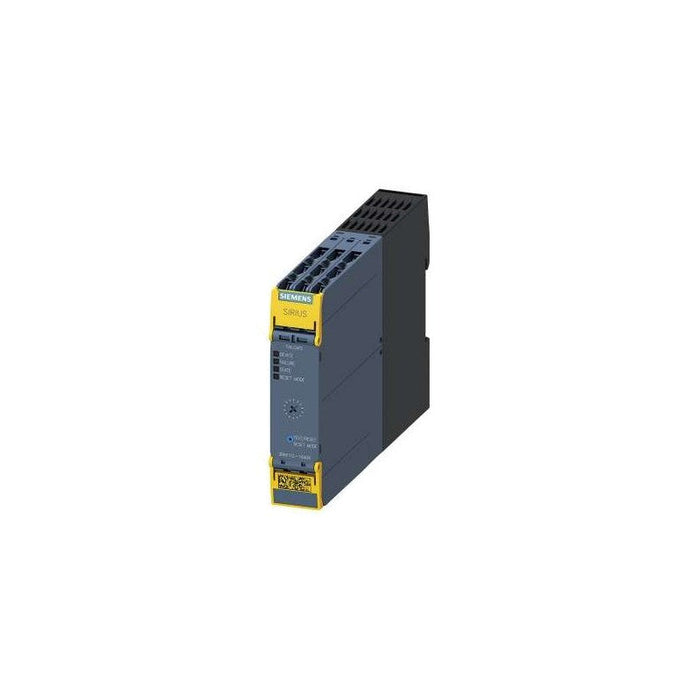

3RM1107-1AA04 Siemens

Name: 3RM1107-1AA04 Siemens
Brand: Siemens
SKU: 3RM1107-1AA04
Price: 874.5 USD
Availability: InStock

$500.00 - $874.50

$874.50

$500.00 - $874.50

$874.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 3RM1107-1AA04 is a SIRIUS 3RM1 series fail-safe direct motor starter by Siemens. It provides electronic overload protection and safety-related disconnection, supporting direct-on-line starting for three-phase motors (0.55-3 kW). It accommodates a control supply of 24 V DC, integrates auxiliary contact monitoring, and meets IEC standards for insulation, surge resistance, and environmental robustness. Typical applications include safety-critical motor starts in industrial machinery and automated systems.

Best Suited For

Fail-safe direct start of three-phase motors
Applications requiring safety-related disconnection
Industrial automation machinery protection
Replacement in SIRIUS 3RM1 installations
Retrofit in safety control circuits

Motor power range

0.55 … 3 kW

Operational current (400 V AC)

7 A

Control voltage DC

19.2 … 30 V (nom. 24 V)

Weight

0.307 kg

Technical Specifications

I/O & Electrical

Operational current (400 V AC-3 at 40 °C)

7 A

Maximum starting ampacity

56 A

Auxiliary contact rating (AC-15 at 230 V)

3 A

Auxiliary contact rating (DC-13 at 24 V)

1 A

Communication & Power

Control supply voltage

19.2 … 30 V DC

Control current (standby)

13 mA

Control current (operation)

57 mA

Inrush current (24 V DC)

300 mA

Motor start inrush (24 V DC)

130 mA

Inrush duration (switch-on of motor)

20 ms

Power loss, auxiliary/control circuit OFF

0.35 W

Power loss, auxiliary/control circuit ON

1.37 W

Physical & Environmental

Insulation voltage rated value

500 V

Surge voltage resistance

6 kV

Shock resistance

6 g / 11 ms

Vibration resistance

1…6 Hz, 15 mm; 20 m/s², 500 Hz

Mounting

Screw and snap-on mounting onto 35 mm DIN rail

Mounting position

Vertical, horizontal, standing (observe derating)

Height

100 mm

Weight

0.307 kg

Certifications

Complies with IEC 60947-4-2, overvoltage category III, EMC Class A immunity and emission, protective separation between main/auxiliary (500 V) and control/auxiliary (250 V).
