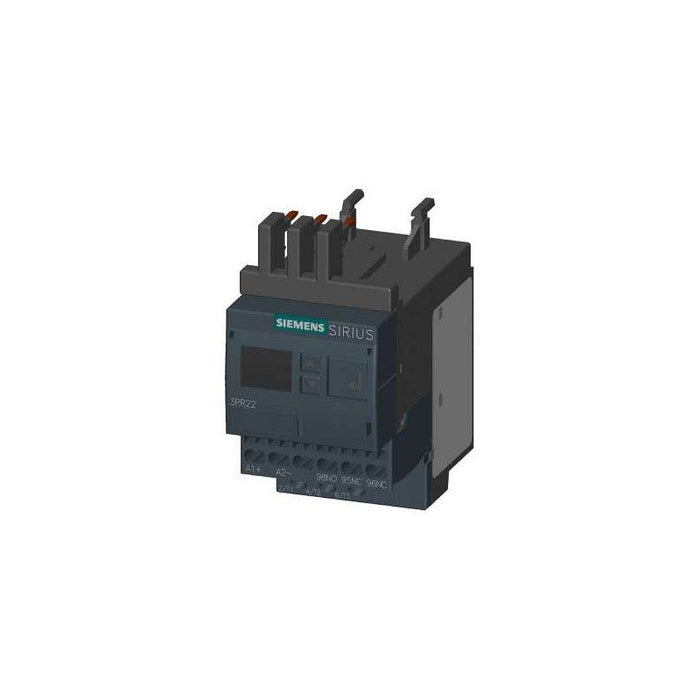

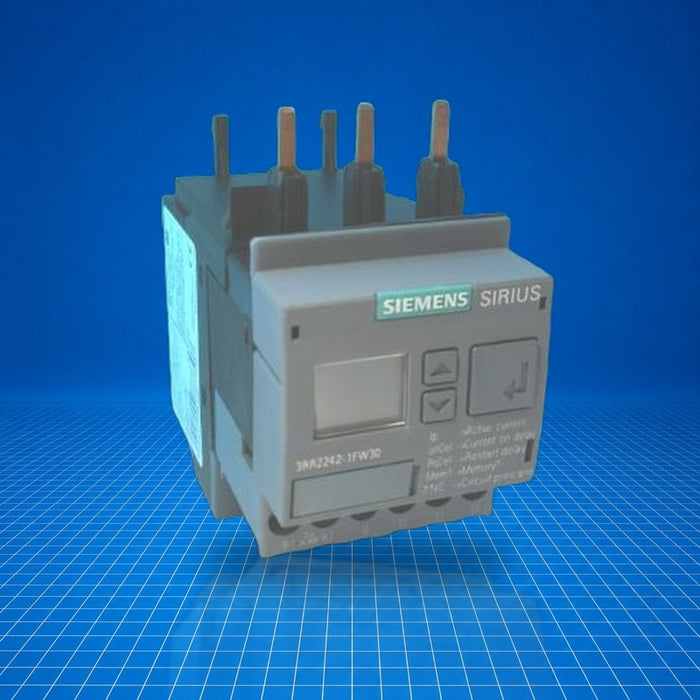

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3RR2242-1FW30 Siemens
Original price
$519.96
-
Original price
$700.00
Original price
$519.96
$519.96
-
$700.00
Current price
$519.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3RR2242-1FW30 is a Sirius series, digitally adjustable three-phase current monitoring relay designed for direct mounting on 3RT2 S0 contactors. It monitors apparent or active current from 4 to 40 A at frequencies between 20 and 400 Hz. With supply voltage ranging from 24 to 240 V AC/DC, it provides one change-over contact and one semiconductor (static) output for alarm and warning functions. Typical applications include motor protection, phase failure detection, and overload monitoring in industrial automation control systems using contactor assemblies.
Best Suited For
- Mounting directly onto Siemens 3RT2 S0 contactors
- Overload and phase failure protection in three-phase motor circuits
- Current monitoring with adjustable thresholds (4-40 A range)
- Alarm and warning notification via static output
- Control systems requiring digitally adjustable monitoring settings
Monitoring range
4-40 A
Supply voltage
24-240 V AC/DC
Outputs
1 change-over contact; 1 semiconductor output
Mounting
On 3RT2 S0 contactor
Protection class
IP20
Technical Specifications
I/O & Electrical
Monitoring current type
AC
Adjustable current response
4-40 A
Communication & Power
Supply voltage
24-240 V AC/DC
Supply frequency range
50-60 Hz
Operating apparent power
4 VA
Consumed current at 24 V
90 mA
Consumed current at 240 V
12 mA
Physical & Environmental
Protection class (front/terminals)
IP20 / IP20
Shock resistance
15 g / 11 ms
Vibration resistance
10-55 Hz / 0.35 mm
Mechanical service life
10 000 000 cycles
Electrical endurance AC-15, 230 V
100 000 cycles
Weight
0.279 kg
