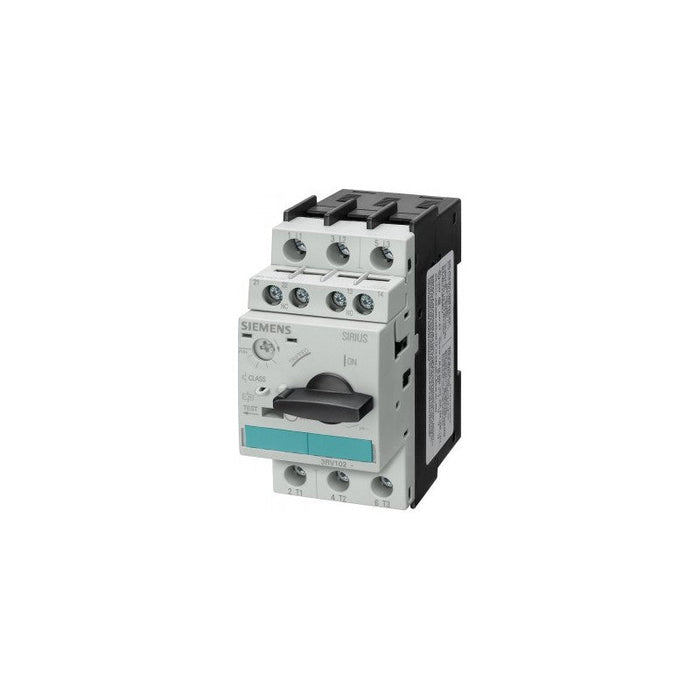

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

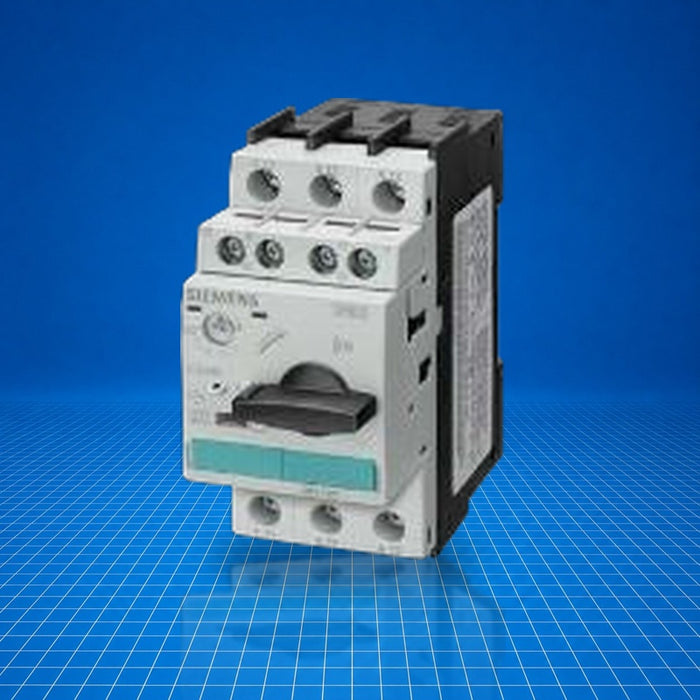

3RV1021-1EA15 Siemens
Original price
$673.17
-
Original price
$751.96
Original price
$751.96
$673.17
-
$751.96
Current price
$751.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3RV1021-1EA15 is a SIRIUS series S0-size motor protective circuit breaker. It provides adjustable overload release and short-circuit protection in motor control circuits. The device integrates a transverse auxiliary switch and is intended for manual disconnect and thermal-magnetic protection. It is typically used in motor starter assemblies, control panels, and small machinery applications requiring adjustable current protection and compact design. 3RV1021-1EA15 is now phased out; the preferred successor is SIRIUS 3RV2011-1EA15. 3RV1021-1EA15.
Best Suited For
- Motor protection in compact control panels
- Manual motor disconnect with overload and short-circuit protection
- Retrofits where S0-size circuit breakers are specified
- Applications requiring integrated auxiliary feedback
Adjustable overload range
2.8…4 A
Short-circuit release
52 A
Auxiliary switch
1 NO + 1 NC
Operating voltage
20…690 V AC
Technical Specifications
I/O & Electrical
Continuous current rated value
4 A
Overload release adjustable
2.8…4 A
Short-circuit release
52 A
Type of voltage (main circuit)
AC
Rated operating voltage
20…690 V
Communication & Power
Power loss (hot, total)
7.25 W
Power loss per pole
2.4 W
Insulation voltage (pollution degree 3)
690 V
Surge voltage resistance
6 kV
Physical & Environmental
Protection class front/terminal
IP20 / IP20
Shock resistance (IEC 60068-2-27)
25 g / 11 ms
Mechanical service life (main/auxiliary contacts)
100 000 cycles
Electrical endurance
100 000 cycles
Installation altitude max
2 000 m
Net weight
365 g
Certifications
CEUKCA
