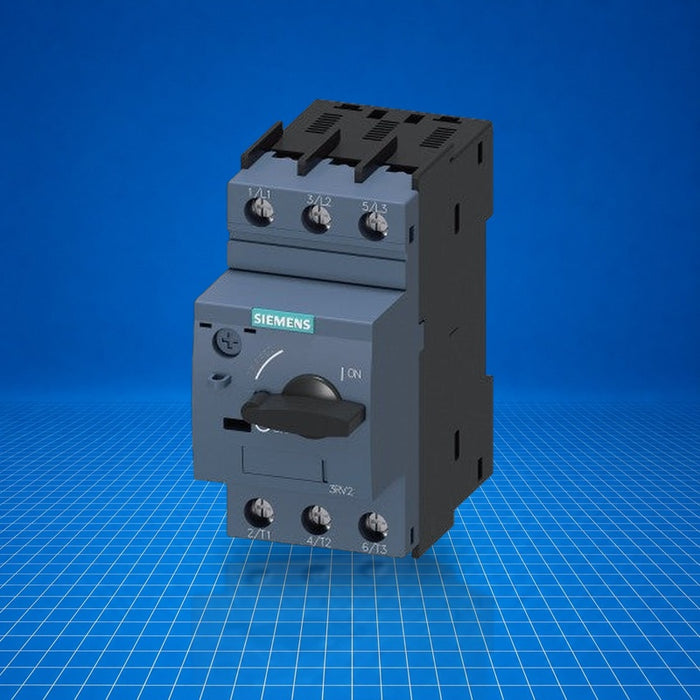

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3RV2011-1AA10 Siemens
Original price
$429.04
-
Original price
$436.00
Original price
$429.04
$429.04
-
$436.00
Current price
$429.04
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3RV2011-1AA10 is a SIRIUS 3RV2 motor-protection circuit breaker, size S00, designed to safeguard three-phase motors against overload and short-circuit conditions. It features an adjustable thermal overload release range of 1.1-1.6 A and an instantaneous short-circuit release of 21 A. The device mounts on 35 mm DIN rail and is used in industrial motor control panels and machinery protection systems where precise current-based motor protection is required. Part number 3RV2011-1AA10 is referenced twice.
Best Suited For
- Three-phase motor protection in compact starter panels
- Retrofitting on-machine control cabinets
- Applications requiring DIN-rail mounting with minimal panel depth
- Systems needing adjustable overload protection (1.1 - 1.6 A range)
Overload range
1.1 - 1.6 A
Short-circuit release
21 A
Mounting
DIN-rail 35 mm
Size
S00
Technical Specifications
I/O & Electrical
Poles
3
Operating voltage range
20 - 690 V AC
Rated operational current (AC-3, 400 V)
1.6 A
Operating frequency
50 - 60 Hz
Communication & Power
Overload release type
Thermal
Short-circuit trip design
Magnetic
Short-circuit breaking capacity (Icu, AC, up to 690 V)
100 kA
Physical & Environmental
Dimensions (H × W × D)
97 × 45 × 97 mm
Net weight
345 g
Ambient operating temperature
-20 ... +60 °C
Storage/transport temperature
-50 ... +80 °C
Altitude
Max 2000 m
Relative humidity (operation)
10 … 95 %
Certifications
ULCCCEACATEXIECEx
