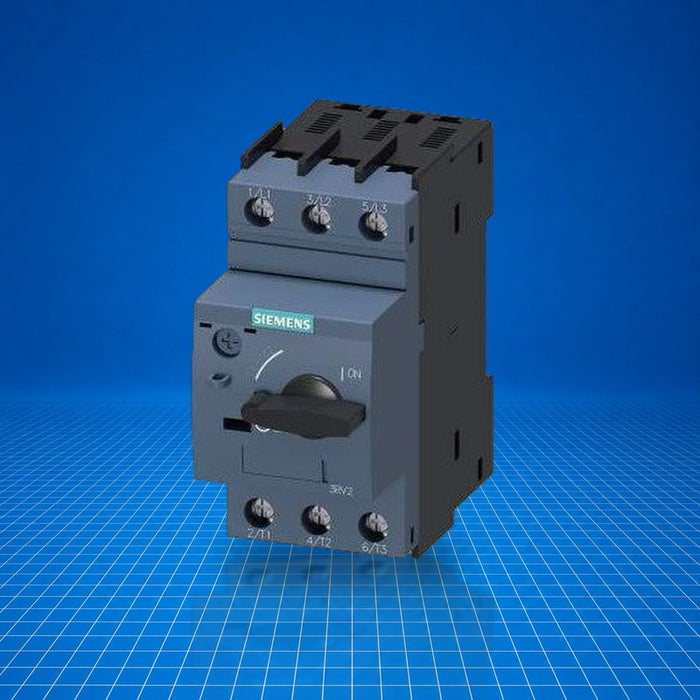

3RV2011-1DA10 Siemens
Original price
$450.00
-
Original price
$589.68
Original price
$589.68
$450.00
-
$589.68
Current price
$589.68
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 3RV2011-1DA10 is a Siemens SIRIUS 3RV2 series motor protection circuit breaker, frame size S00. It provides thermal-magnetic overload protection (Class 10) adjustable from 2.2 A to 3.2 A with a magnetic release rated at 42 A, and is intended to protect three-phase motors by interrupting fault currents. Typical applications include protecting compact motor starters in control panels, integration with S00 contactors, retrofit motor safety, and general-purpose industrial motor safeguarding within systems requiring reliable overload and short-circuit protection.
Best Suited For
- Panel-mounted three-phase motor protection
- Integration with S00/S0 contactor assemblies
- Compact motor starter units in tight control cabinets
- Applications requiring adjustable overload protection 2.2-3.2 A
Adjustable overload range
2.2 … 3.2 A
Magnetic trip
42 A
Poles
3-pole
Frame size
S00
Power loss at AC (hot state)
7.25 W
Technical Specifications
I/O & Electrical
Overload release range
2.2 … 3.2 A
Magnetic trip current
42 A
Poles
3
Rated operational voltage
20 … 690 V AC
Switching capacity per pole
2.4 W
Total power loss (hot)
7.25 W
Physical & Environmental
Net weight
349 g
Ambient temperature (operation)
-20 … +60 °C
Ambient temperature (storage/transport)
-50 … +80 °C
Relative humidity (operation)
10 … 95 %
Installation altitude max
2 000 m
Insulation voltage (pollution degree 3)
690 V
Surge voltage withstand
6 kV
Shock resistance
25 g / 11 ms
Mechanical endurance (main/aux contacts)
100 000 cycles
Electrical endurance
100 000 cycles
