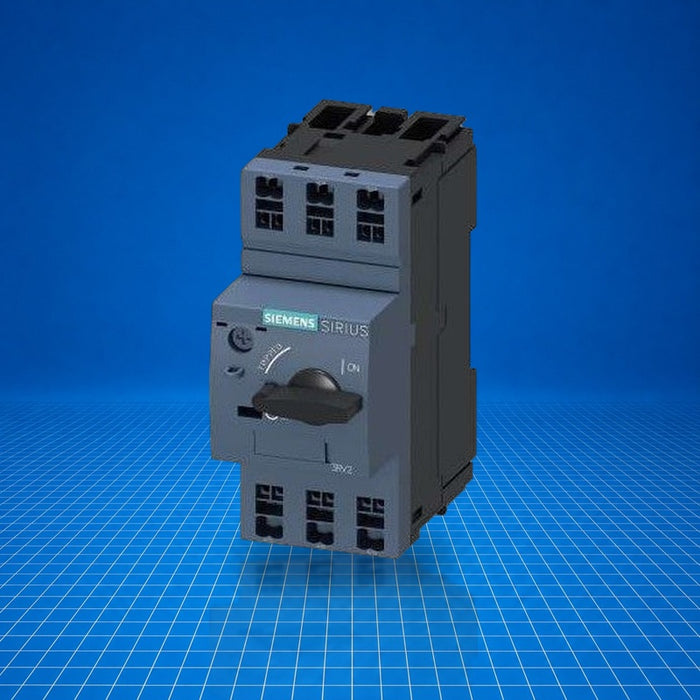

3RV2011-1DA20 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 3RV2011-1DA20 is a SIRIUS 3RV2 series motor-protection circuit breaker, size S00, with thermal overload release (Class 10) adjustable between 2.2 … 3.2 A and instantaneous short-circuit trip at 42 A. It protects three-phase motors by interrupting overloads and short circuits, rated for AC applications up to 690 V. Typical use cases include industrial motor control panels, branch motor feeders, and control systems requiring compact, adjustable protective devices.
Best Suited For
- Three-phase motor feeder protection
- Compact motor control panels
- Adjustable thermal overload applications
- Retrofit replacement for SIRIUS 3RV-1 series
- AC supply networks up to 690 V
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Front protection class IP20. Approvals include UL, CE, ATEX, IECEx, CCC, UKCA, EAC, S-Mark, ABS, BV, DNV, LR, PRS, RINA. RoHS compliant since October 1 2009; contains lead above 0.1 % w/w subject to REACH Art. 33.
