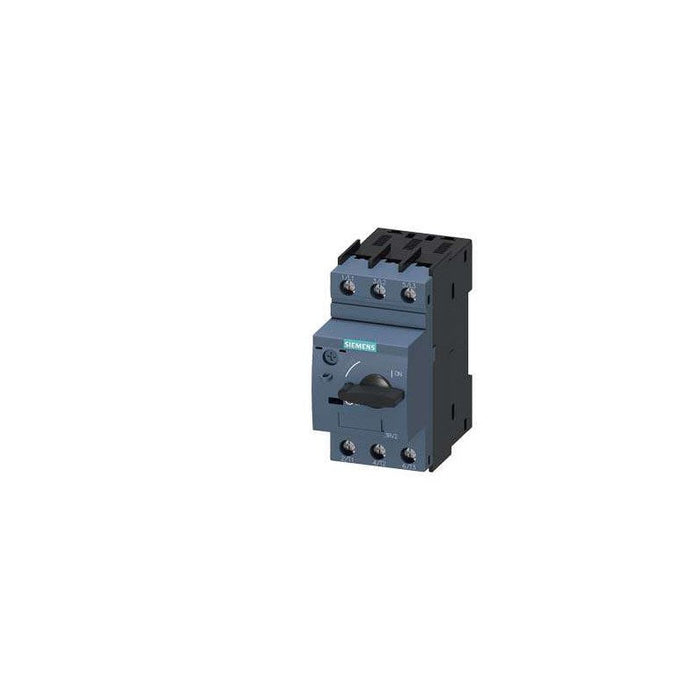

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

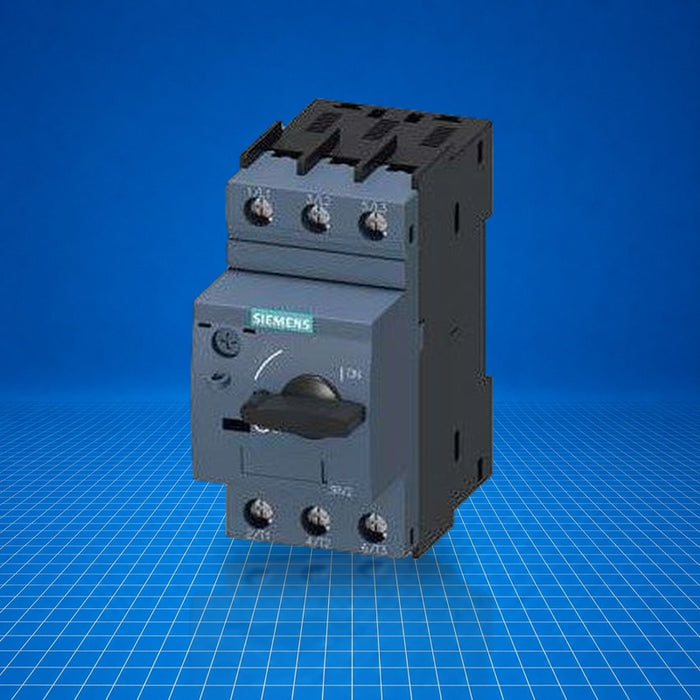

3RV2011-1JA10 Siemens
Original price
$440.00
-
Original price
$452.00
Original price
$440.00
$440.00
-
$452.00
Current price
$440.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3RV2011-1JA10 is a motor protection circuit breaker from the SIRIUS 3RV2 series, sized S00. It provides adjustable overload protection (Class 10) in the 7…10 A range and protects motors in three-pole AC circuits up to 690 V. It incorporates an auxiliary switch and is used in motor control centers, feeder circuits, and machine tool applications requiring reliable short-circuit and overload protection. Part number 3RV2011-1JA10 supports screw-terminal connections and standard switching capacity.
Best Suited For
- Three-phase motor overload protection up to 690 V AC
- Integration in SIRIUS 3RV2 motor starter assemblies
- Replacement in existing Class 10 motor circuits
- Panel-mounted motor feeders in industrial machinery
Overload range
7…10 A
Voltage rating
20…690 V AC
Power loss
9.25 W (hot state total)
Poles
3
Technical Specifications
I/O & Electrical
Adjustable overload current
7…10 A
Voltage rating
20…690 V AC
Number of poles
3
Communication & Power
Power loss
9.25 W (hot operating state total)
Power loss per pole
3.1 W
Physical & Environmental
Insulation voltage (pollution degree 3)
690 V
Surge voltage resistance
6 kV
Mechanical service life (main contacts)
100 000 cycles
Electrical endurance
100 000 cycles
Operating temperature
-20 … +60 °C
Storage/transport temperature
-50 … +80 °C
Relative humidity (operation)
10 … 95 %
Shock resistance
25 g / 11 ms
Max installation altitude
2 000 m
