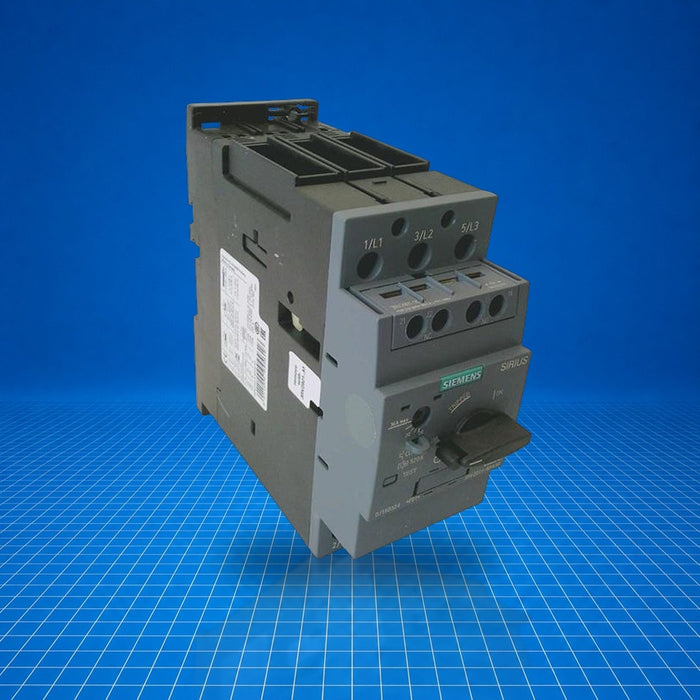

3RV2031-4PA10 Siemens

Original price $591.25 - Original price $799.96
Original price
$799.96
$591.25 - $799.96
Current price $799.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$799.96
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$591.25
7 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

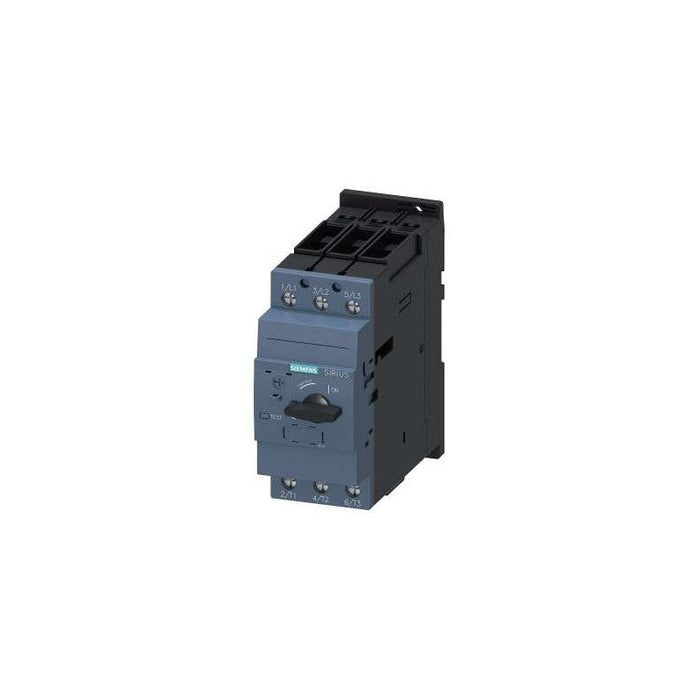

The Siemens 3RV2031-4PA10 is a SIRIUS 3RV2 series circuit-breaker sized S2 with a Class 10 thermal overload release adjustable from 28 to 36 A, and an instantaneous N-release set at 520 A. It protects three-phase AC motors by combining thermal and magnetic trip functionality, providing motor protection and overload/short-circuit clearing. It is typically used in industrial motor control panels for pump, fan, compressor, or conveyor protection. The part number (3RV2031-4PA10) identifies this specific trip class and current range.

Best Suited For

  • Motor protection in three-phase AC systems 20…690 V
  • Panel-mounted SIRIUS motor starter assemblies
  • Applications requiring combined thermal and magnetic protection
  • Replacement or retrofit in existing 3RV2 S2 systems
  • Systems needing adjustable overload from 28…36 A
Overload range
28…36 A
Instantaneous trip (N-release)
520 A
Number of poles
3
Net weight
1.074 kg
Trip class
CLASS 10

Technical Specifications

I/O & Electrical

Adjustable overload current
28…36 A
Instantaneous trip current
520 A
Number of poles
3
Operating voltage (rated)
20…690 V AC

Communication & Power

Power loss (AC hot state total)
20 W
Power loss per pole
6.7 W
Surge voltage resistance
6 kV

Physical & Environmental

Ambient temperature (operation)
-20…+60 °C
Storage/transport temperature
-50…+80 °C
Relative humidity (operation)
10…95 %
Installation altitude max.
2000 m
Mechanical service life (main contacts)
50 000 cycles
Electrical endurance
50 000 cycles

Certifications

ULCCCIECExATEXABSBVDNVLRRINA

Protection class: front IP20 (finger-safe). Safety functions: suitable for safety-related OFF switching. ISO 13849-1 device type 3, IEC 61508-2 Type A, T1 = 10 a. Approvals include UL, CCC, IECEx, ATEX, ABS, BV, DNV, LR, RINA, among others.
