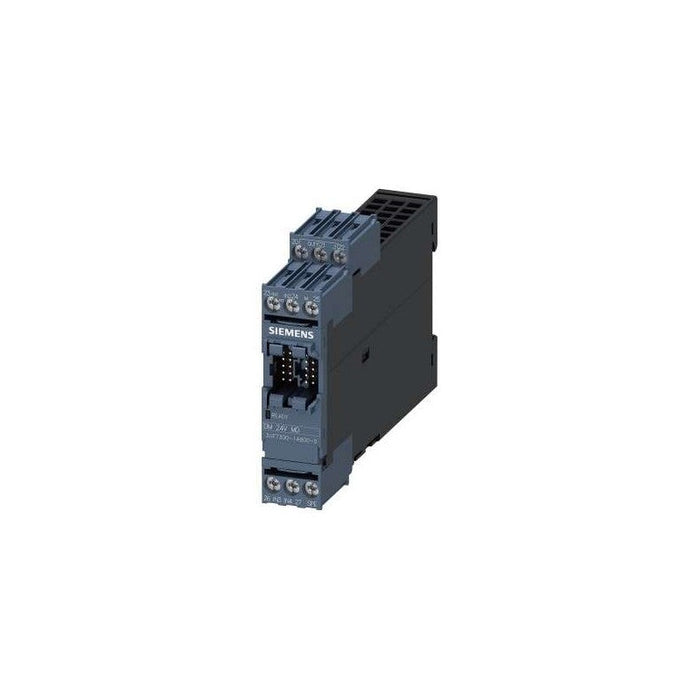

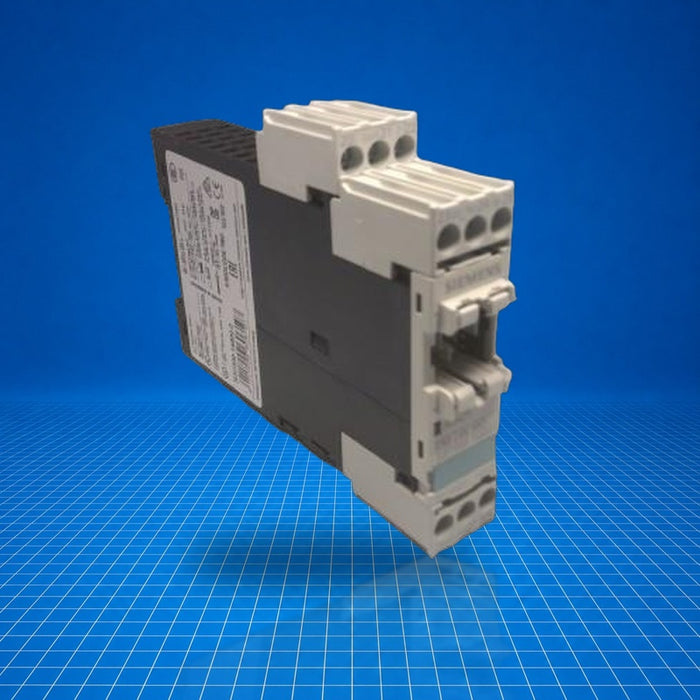

3UF7300-1AB00-0 Siemens
Original price
$450.00
-
Original price
$756.25
Original price
$450.00
$450.00
-
$756.25
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3UF7300-1AB00-0 is a digital expansion module in the SIMOCODE pro V motor management system family. It provides four digital inputs and two monostable relay outputs, designed to expand the basic SIMOCODE pro V unit. The module supports typical industrial motor control applications such as starting, status feedback, sequence control, and fault indication. It operates from 24 V DC and integrates directly into the SIRIUS modular architecture, enabling streamlined system configuration and safe signal interfacing. The part number is 3UF7300-1AB00-0.
Best Suited For
- SIMOCODE pro V system expansion
- Digital status input acquisition
- Relay output control for motor circuit interfacing
- On-panel integration within motor control cabinets
Digital inputs
4
Relay outputs (monostable)
2
Supply voltage
24 V DC
Active power consumption
0.7 W
Technical Specifications
I/O & Electrical
Digital inputs
4
Relay outputs (monostable)
2
Switching capacity (NO contacts) AC-15 @ 24 V
6 A
Switching capacity (NO) AC-15 @ 120 V
6 A
Switching capacity (NO) AC-15 @ 230 V
3 A
Switching capacity (NO) DC-13 @ 24 V
2 A
Switching capacity (NO) DC-13 @ 60 V
0.55 A
Switching capacity (NO) DC-13 @ 125 V
0.25 A
Continuous current @ 50 °C
6 A
Continuous current @ 60 °C
5 A
Communication & Power
Input voltage
24 V DC
Active power consumption
0.7 W
Physical & Environmental
Net weight
144 g
Shock resistance
15 g / 11 ms
Vibration resistance
1 … 6 Hz: 15 mm; 6 … 500 Hz: 2 g
Insulation voltage (degree of pollution 3)
300 V
Surge voltage resistance
4 000 V
