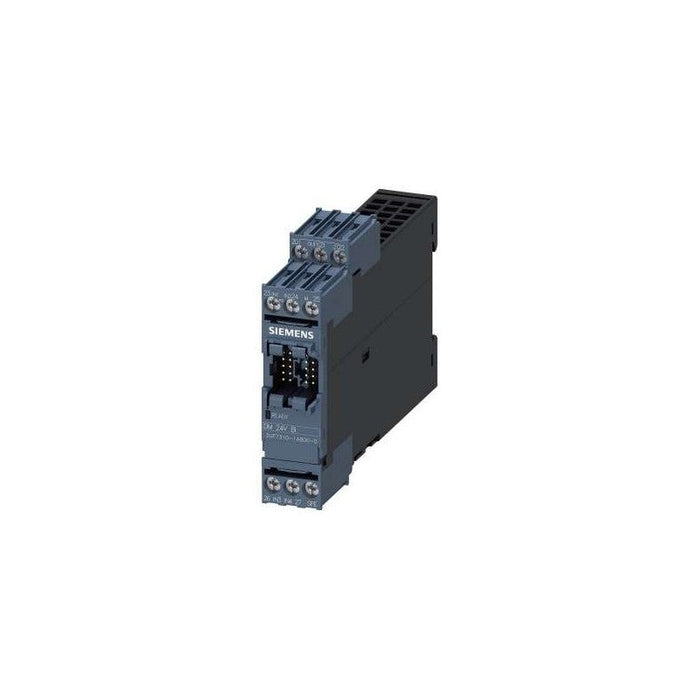

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

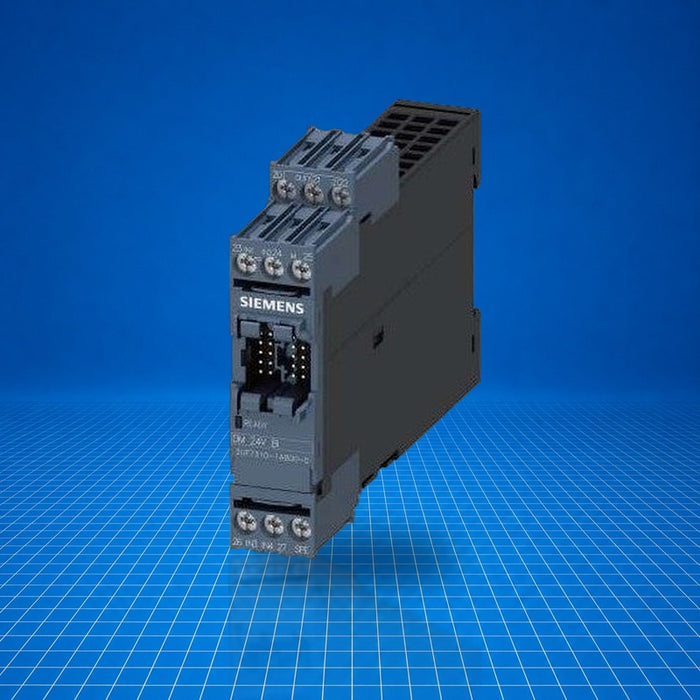

3UF7310-1AB00-0 Siemens
Sold out
Original price
$0.00
-
Original price
$756.00
Original price
$756.00
$0.00
-
$756.00
Current price
$756.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3UF7310-1AB00-0 is a digital module in the SIMOCODE pro 3UF7 motor management and control device family. It functions as an auxiliary digital extension to the SIMOCODE pro V basic unit, providing four digital inputs and two bistable relay outputs. The module operates at 24 V DC input voltage and mounts directly to the base unit. It is used in motor protection and control systems within industrial environments where additional discrete signal interfacing is required. 3UF7310-1AB00-0 integrates into motor management applications such as start/stop signaling, fault monitoring, and auxiliary interlocks.
Best Suited For
- SIMOCODE pro V-based motor starter control
- Adding discrete inputs to motor management logic
- Remote signaling of motor status to control systems
- Implementing auxiliary relay-based signaling or interlock outputs
Digital inputs
4
Relay outputs
2 (bistable)
Input voltage
24 V DC
Power consumption
0.7 W
Net weight
0.141 kg
Technical Specifications
I/O & Electrical
Digital inputs
4
Relay outputs
2 (bistable)
Switching capacity (AC-15, NO contact)
24 V: 6 A; 120 V: 6 A; 230 V: 3 A
Switching capacity (DC-13, NO contact)
24 V: 2 A; 60 V: 0.55 A; 125 V: 0.25 A
Continuous current (NO contact)
50 °C: 6 A; 60 °C: 5 A
Communication & Power
Input voltage
24 V DC
Consumed active power
0.7 W
Insulation voltage (pollution degree 3)
300 V (AC rated)
Surge voltage resistance
4 000 V
Physical & Environmental
Shock resistance
15 g/11 ms (IEC 60068-2-27)
Vibration resistance
1-6 Hz: 15 mm; 6-500 Hz: 2 g (IEC 60068-2-6)
Mechanical service life
10 000 000 cycles (typical)
Electrical endurance
100 000 cycles (typical)
Net weight
0.141 kg
