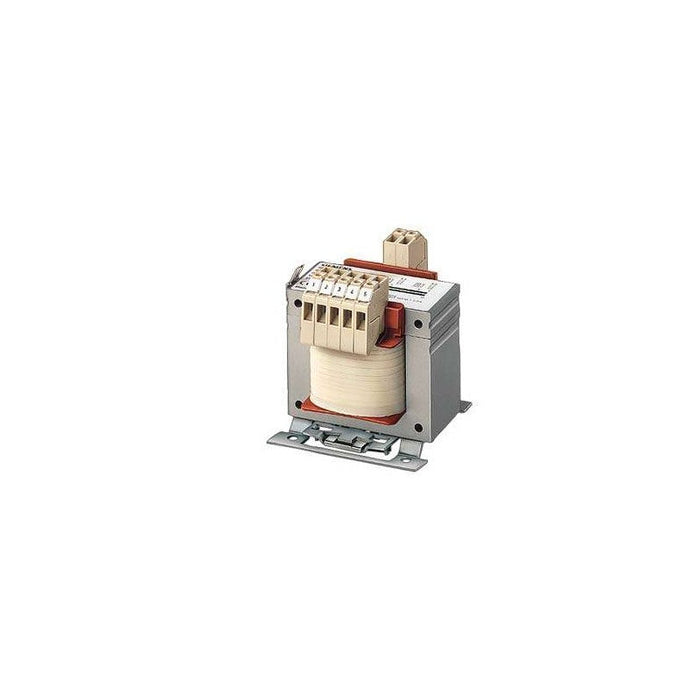

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
4AM4642-8DD40-0FA0 Siemens
Original price
$0.00
-
Original price
$2,294.28
Original price
$2,294.28
$0.00
-
$2,294.28
Current price
$2,294.28
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 4AM4642-8DD40-0FA0 is a single-phase control/isolation transformer from the SITAS family. It converts a wide range of primary voltages (including 550 V down to 208 V) into dual secondary outputs of 2 × 115 V. The device is used for providing isolated low-voltage control power in industrial automation panels and control cabinets and supports protective circuitry and dedicated ground isolation. Part number 4AM4642-8DD40-0FA0 is optimized for installations requiring dual 115-volt AC control supply.
Best Suited For
- Panel control power supply
- Isolation of field-side control circuits
- Applications needing dual 115 V secondary outputs
- Retrofit installations with variable primary voltage
Rated power (VA)
400 VA
Primary voltage range
550-208 V AC
Secondary output
2 × 115 V
Frequency
50-60 Hz
Protection class / insulation class
IP00 / Class B
Technical Specifications
I/O & Electrical
Primary voltage
550-525-500-480-460-440-415-400-380-230-208 V
Secondary voltage
2 × 115 V
Rated apparent power
400 VA
Short-term vector power
1 440 VA
Short-circuit voltage
4.4 %
Efficiency
0.91
Physical & Environmental
Frequency range
50-60 Hz
Temperature rise / insulation class
Class B
Protection rating
IP00
Connection type
Screw / flat-type terminals
Mounting
Screws
Certifications
CEcRUus
Conforms to EN 61558-2-1, -2-2, -2-4. UL/CSA recognized.
