4AM5242-8DD40-0FA0 Siemens

Name: 4AM5242-8DD40-0FA0 Siemens
Brand: Siemens
SKU: 4AM5242-8DD40-0FA0
Price: 439.56 USD
Availability: InStock

$439.56 - $824.86

$439.56

$439.56 - $824.86

$439.56

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

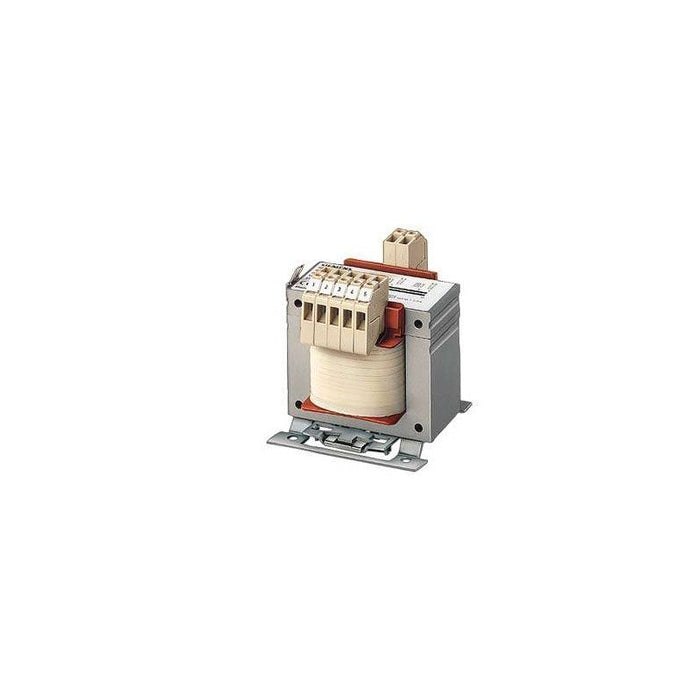

The Siemens 4AM5242-8DD40-0FA0 is a single-phase SITAS series control/ isolation transformer used in industrial control panels. It converts a wide range of primary voltages (230-600 V) to 2×115 V secondary, providing 630 VA continuous (2.35 kVA S6) power capacity. The unit supports frequencies of 50-60 Hz, is designed for screw mounting and screw or tab terminal connections, and is built for general control transformer duties in motor control centers, PLC power provisioning, or auxiliary circuits. 4AM5242-8DD40-0FA0 offers IEC Class B insulation and operates at up to 40 °C ambient.

Best Suited For

Primary voltage conversion for control circuits
PLC and relay power supply in control panels
Motor control center auxiliary feeds
Panel-mounted industrial control applications

Rated apparent power

630 VA (continuous) / 2 350 VA (S6)

Primary voltage range

230-600 V AC

Secondary voltage

2×115 V AC

Insulation class / Ambient

Class B / 40 °C

Protection class / Mounting

IP00 / screw-mount

Technical Specifications

I/O & Electrical

Primary voltage (rated values)

230 V, 240 V, 400 V, 415 V, 440 V, 460 V, 480 V, 500 V, 525 V, 550 V, 575 V, 600 V

Secondary voltage

2×115 V AC

Rated apparent power

630 VA continuous

Short-time (S6) apparent power

2 350 VA

Frequency range

50-60 Hz

Communication & Power

Insulation class / Temperature rise

Class B / 40 K

Connection

screw-type / tab terminals

Physical & Environmental

Protection class

IP00

Mounting method

screw-mount

Construction core

EI 150/48

Ambient temperature (rated)

40 °C

Certifications

CEcRUus

Complies with EN 61558-2-1, -2-2, -2-4; recognized to UL/CSA standards
