4AM5742-8DD40-0FA0 Siemens

Name: 4AM5742-8DD40-0FA0 Siemens
Brand: Siemens
SKU: 4AM5742-8DD40-0FA0
Price: 799.96 USD
Availability: InStock

$799.96 - $2,928.60

$799.96

$799.96 - $2,928.60

$799.96

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

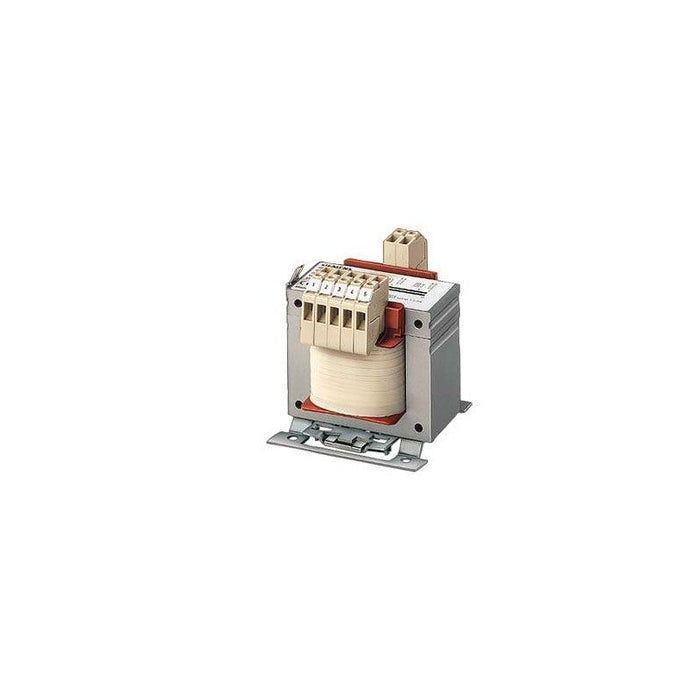

The Siemens 4AM5742-8DD40-0FA0 is a single-phase control and isolation transformer from the SITAS family (Siemens brand SIDAC), designed for industrial control systems requiring stepped-down secondary voltages for control circuits and protective relays. It delivers 1 kVA continuous apparent power with 5 kVA short-term vector capability. It supports a wide range of primary voltages and provides dual secondary outputs. Typical use cases include control panel power feeding, isolation for signal circuits, and transformer-based control of protection devices.

Best Suited For

Isolation of control circuits
Control panel voltage supply
Protection relay power source
Step-down for low-voltage control devices

Apparent Power (continuous)

1 kVA

Short-Term Power

5 kVA

Primary Voltage Range

550-525-500-480-460-440-415-400-380-230-208 V

Secondary Voltages

2×115 V

Protection Class

IP00

Technical Specifications

I/O & Electrical

Primary voltage (rated values)

550 V, 525 V, 500 V, 480 V, 460 V, 440 V, 415 V, 400 V, 380 V, 230 V, 208 V

Secondary voltage

2×115 V

Rated apparent power

1 kVA

Short-term vector power

5 kVA

Efficiency

0.93

Electrical input frequency range

50 Hz - 60 Hz

Communication & Power

Connection type

screw-type / tab terminals

Mounting

screws

Physical & Environmental

Thermal class

B (IEC 60085)

Ambient temperature (rated)

40 °C

Protection class

IP00

Core construction

EI 150/90

Dimensions (W×H×D)

0.152 m × 0.144 m × 0.132 m

Weight

14.168 kg

Certifications

UL RecognizedCEcRUusEACUK DeclarationEU DeclarationChinese Quality Checkmark

Certified to EN 61558-2-1, -2-2, -2-4 standards; UL/CSA recognized; CE; cRUus; UK and EU Declarations of Conformity; EAC; Chinese Quality Checkmark.
