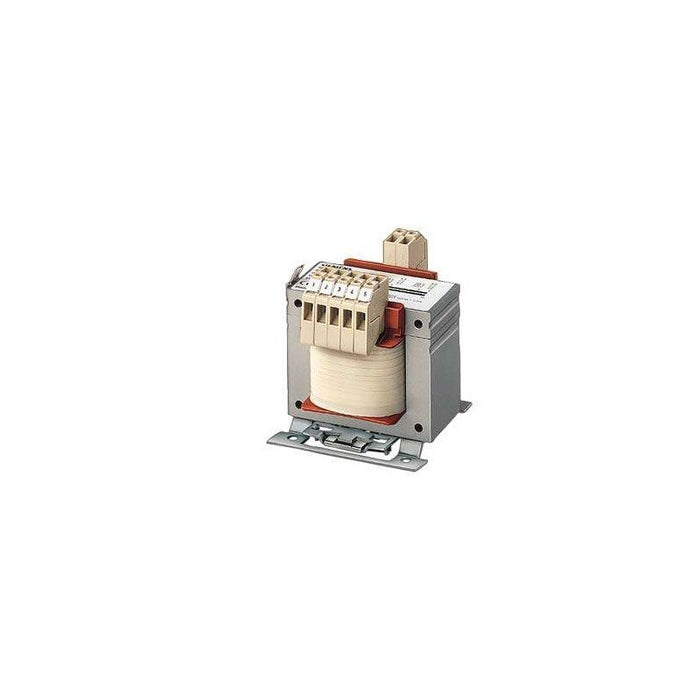

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

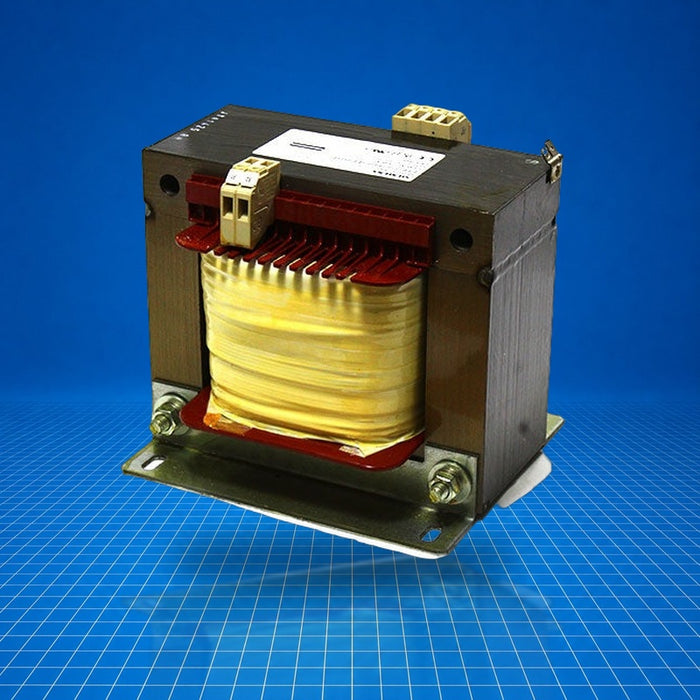

4AM6142-5AT10-0FA0 Siemens
Original price
$0.00
-
Original price
$3,610.25
Original price
$3,610.25
$0.00
-
$3,610.25
Current price
$3,610.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 4AM6142-5AT10-0FA0 is a single-phase SITAS control/isolation transformer from the SIDAC family, designed to step down 400 V AC input (±5%) to a 230 V AC output at up to 1.6 kVA continuous, with a short-term capacity of 7.3 kVA. It is used in electrical control panels, machine tool circuits, and automation systems, providing galvanic isolation and voltage transformation for control circuits. The 4AM6142-5AT10-0FA0 transformer integrates direct screw/tab connections and screw mounting in industrial installations.
Best Suited For
- Control panel voltage isolation
- Machine tool control circuits
- Automation system supply
- Industrial control circuitry
Rated power
1 600 VA
Input voltage
400 V AC ±5 %
Output voltage
230 V AC
Short-term power
7 300 VA
Technical Specifications
I/O & Electrical
Input voltage
380 V / 400 V / 420 V AC
Output voltage
230 V AC
Primary frequency
50-60 Hz
Rated apparent power
1 600 VA
Short-term apparent power
7 300 VA
Efficiency
0.96
Communication & Power
Connection type
Screw-type terminals / tab terminals
Physical & Environmental
Mounting method
Screws
Thermal class
B
Ambient temp (rated)
40 °C
Protection class
IP00
Core construction
EI 174/82
Dimensions (W × H × D)
0.176 m × 0.164 m × 0.138 m
Weight
17.727 kg
Certifications
Conforms to EN 61558-2-1, -2-2, -2-4; CE; cRUus
