Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

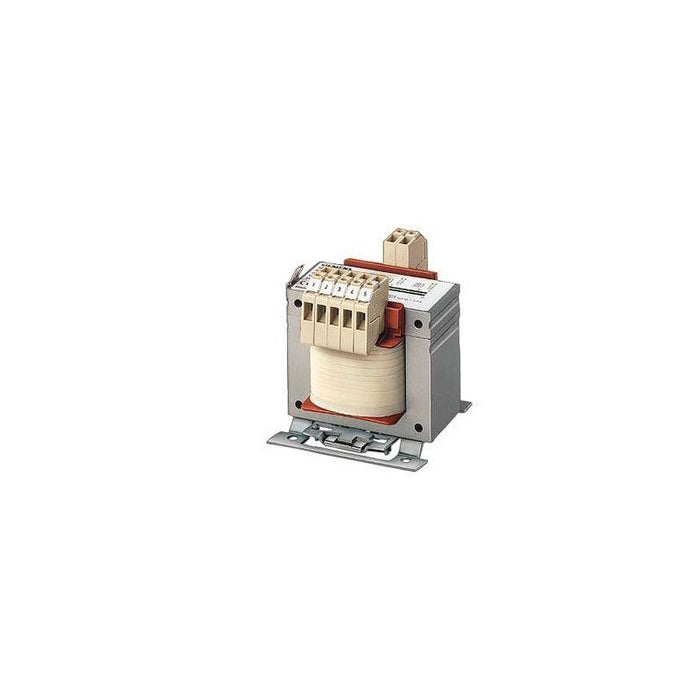

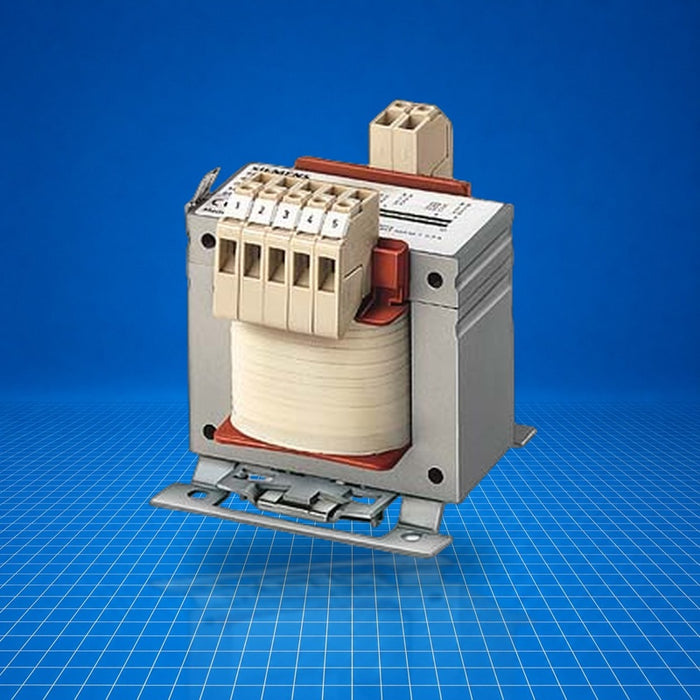

The Siemens 4AM6442-8DD40-0FA0 is a control/isolation transformer in the SITAS family, designed for stepping down single-phase utility voltages into dual secondary 115 V outputs (2×115 V). It provides 2 kVA continuous (9.7 kVA short-time S6), making it suitable for control circuits, instrumentation power, or secondary distribution applications in industrial control panels and machine tool systems. The part number is used for ordering and reference to ensure the correct electrical and mechanical characteristics.
Best Suited For
- On-machine control transformer for 115 V control buses
- Panel-mounted isolation for PLC or relay circuits
- Applications requiring dual 115 V secondary supply
- Upgrade or retro-fit for existing SITAS installations
Rated apparent power (continuous)
2 000 VA
Short-time (S6) power
9 700 VA
Primary voltage range
550-230 V
Secondary voltage
2×115 V
Temperature rise / Insulation class
40 K / B
Technical Specifications
I/O & Electrical
Primary voltage (selectable)
550 V, 525 V, 500 V, 480 V, 460 V, 440 V, 415 V, 400 V, 380 V, 230 V, 208 V
Secondary voltage
2×115 V
Rated apparent power
2 000 VA
Short-time (S6) apparent power
9 700 VA
Electrical input frequency
50-60 Hz
Communication & Power
Temperature rise / Insulation class
40 K / B
Physical & Environmental
Protection class (IP rating)
IP00
Mounting method
Screws
Electrical connections
Screw-type terminals / tab terminals
Core construction
EI 174/102
Dimensions (W×H×D)
0.176 m × 0.164 m × 0.158 m
Certifications
CEcRUusUK CAEACQC PASS
