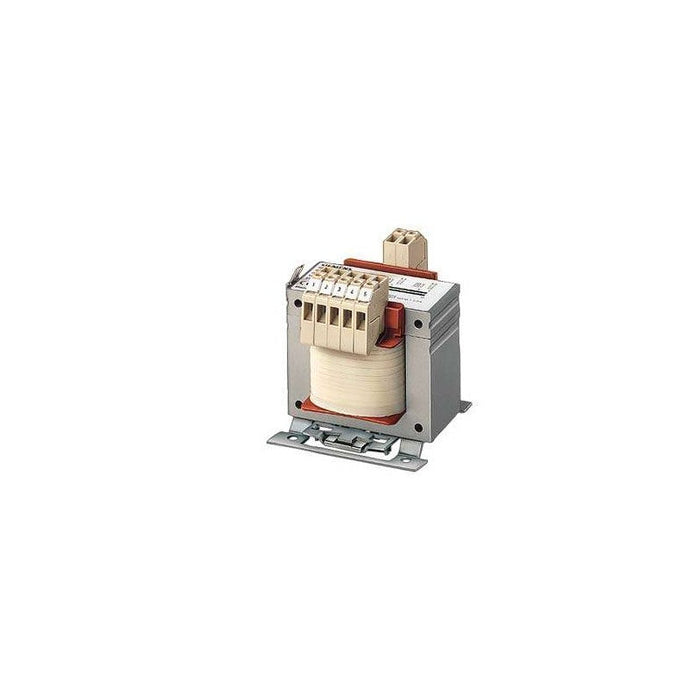

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

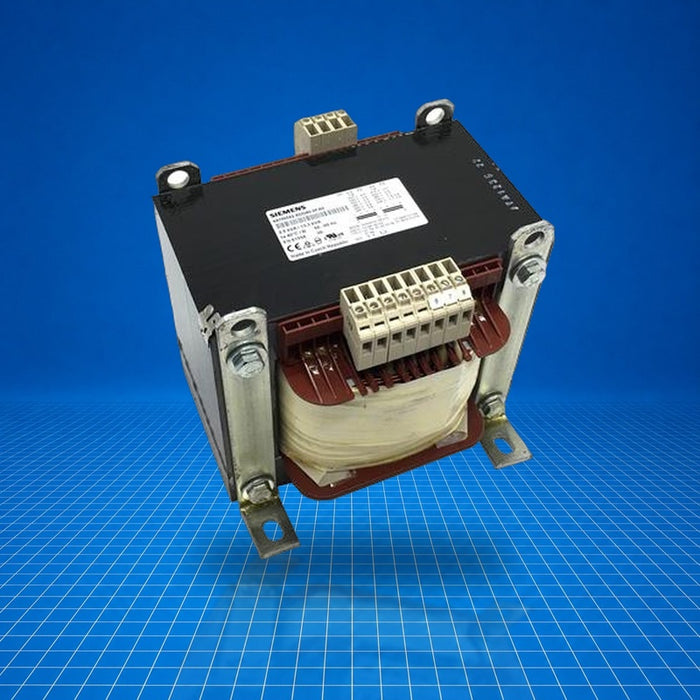

4AM6542-8DD40-0FA0 Siemens
Original price
$742.47
-
Original price
$6,243.00
Original price
$742.47
$742.47
-
$6,243.00
Current price
$742.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 4AM6542-8DD40-0FA0 is a SITAS control / isolation transformer designed for single-phase industrial power applications. It delivers a rated apparent power of 2.5 kVA (S6 duty 13.3 kVA) and steps down from a wide range of primary voltages to dual 115 V secondary outputs. It is suitable for integration in control panels, switchgear, or machine control circuits requiring galvanic isolation. The part number 4AM6542-8DD40-0FA0 adheres to relevant IEC/EN standards and has UL/CSA recognition.
Best Suited For
- Control panel isolation
- Safety-circuits requiring galvanic separation
- Machine tool control transformers
- Applications requiring broad nominal primary voltages
Rated apparent power
2.5 kVA (S6 13.3 kVA)
Primary voltage range
550-208 V
Secondary voltages
2 × 115 V
Temperature rise / insulation class
40 K / B
Certifications
EN 61558-2-1, -2-2, -2-4; UL/CSA-recognized
Technical Specifications
I/O & Electrical
Rated apparent power
2.5 kVA (S6 13.3 kVA)
Primary voltage (Upri)
550-525-500-480-460-440-415-400-380-230-208 V
Secondary voltage (Usec)
2 × 115 V
Secondary current (Isec)
10.9-21.8 A
Frequency
50…60 Hz
Physical & Environmental
Vector group / shielding winding
II0 / 0
Temperature rise / Insulation class
40 K / B
IP rating
IP00
Connection
Screw / flat-type
Mounting
Screws
Net weight
26.820 kg
Packaging dimensions
396 × 401 × 383 mm
Certifications
UL RecognizedCSA Recognized
Conforms to EN 61558-2-1, -2-2, -2-4; UL/CSA-recognized;
