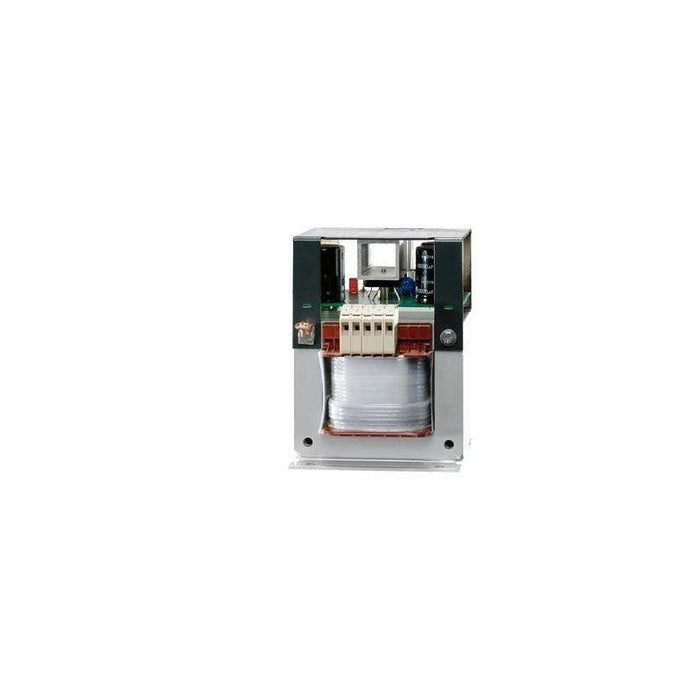

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

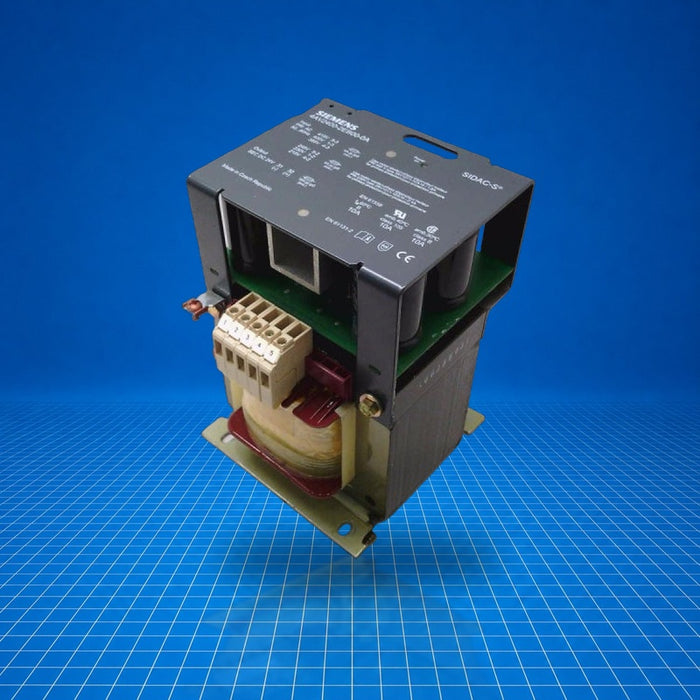

4AV2400-2EB00-0A Siemens
Original price
$1,535.00
-
Original price
$2,475.00
Original price
$2,475.00
$1,535.00
-
$2,475.00
Current price
$2,475.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 4AV2400-2EB00-0A is a SIRIUS non-stabilized single-phase safety isolating transformer (safety transformer) designed to convert 400-230 V AC primary to 24 V DC secondary at a nominal power of 0.24 kW. It functions in industrial control systems to isolate and supply low-voltage DC control circuits. Typical applications include feeding safety PLC inputs, control relays, and low-voltage sensor power in machine safety and control panels. Part number appears as 4AV2400-2EB00-0A.
Best Suited For
- Safety isolation of control circuits
- Machine tool control panels
- Powering safety PLC input modules
- Low-voltage relay and sensor supply
Primary voltage
400-230 V AC ±15 %
Secondary voltage
24 V DC
Nominal power
0.24 kW
Secondary current
10 A / 12 A (60 % / 40 % duty)
Protection class
I, IP00
Technical Specifications
I/O & Electrical
Primary voltage
400-230 V AC ±15 %
Secondary voltage
24 V DC
Nominal power
0.24 kW
Secondary current
10 A / 12 A (60 % / 40 % duty)
Frequency
50…60 Hz
Communication & Power
Protection class
I
Insulation class / temperature rise
60 / B
Voltage regulation (waste heat W %)
5 %
Vector group / shielding winding
II0 / 0
Physical & Environmental
IP rating
IP00
Connection type
Screw / flat-type
Mounting
Screws / mounting rails
Certifications
EN 61558-2-6EN 61131-2
Conforms to EN 61558-2-6 and EN 61131-2 standards for safety isolating transformers.
