5069-L306ERS2 Allen-Bradley
Original price
$2,418.75
-
Original price
$2,484.00
Original price
$2,418.75
$2,418.75
-
$2,484.00
Current price
$2,418.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Power Supply | 18–32 V DC |
| User Memory | 0.6 MB |
| Safety Memory | 0.3 MB |
| Maximum Local I/O Modules | 8 |
| Maximum EtherNet/IP Nodes | 16 |
| Ethernet Ports | Dual 1 Gigabit Ethernet supporting DLR & Dual‑IP |
| Mounting | DIN‑rail (horizontal only), EN50022 – 35 × 7.5 mm |
| Weight (approx) | 0.768 kg (1.693 lb) |
| Dimensions (HxWxD) | 143.97 × 98.10 × 136.81 mm (5.67 × 3.86 × 5.39 in) |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 85 °C |
| Relative Humidity | Max 95 % RH |

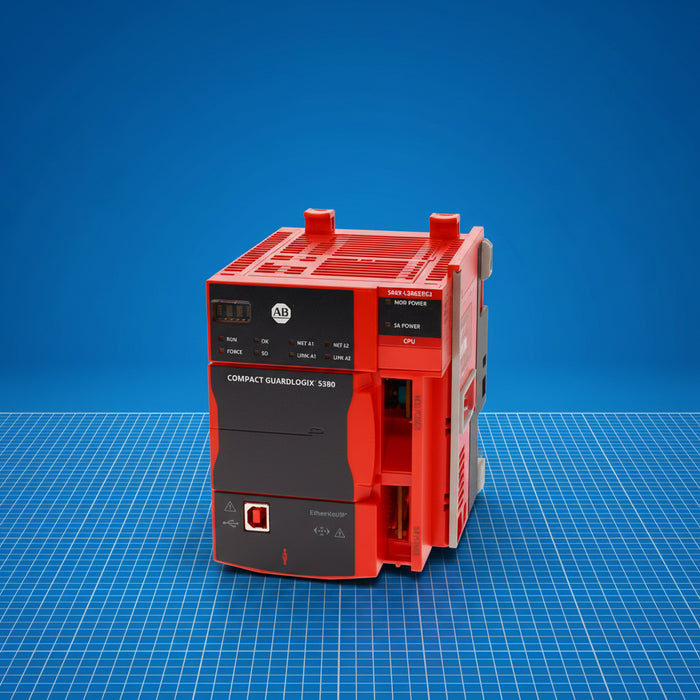

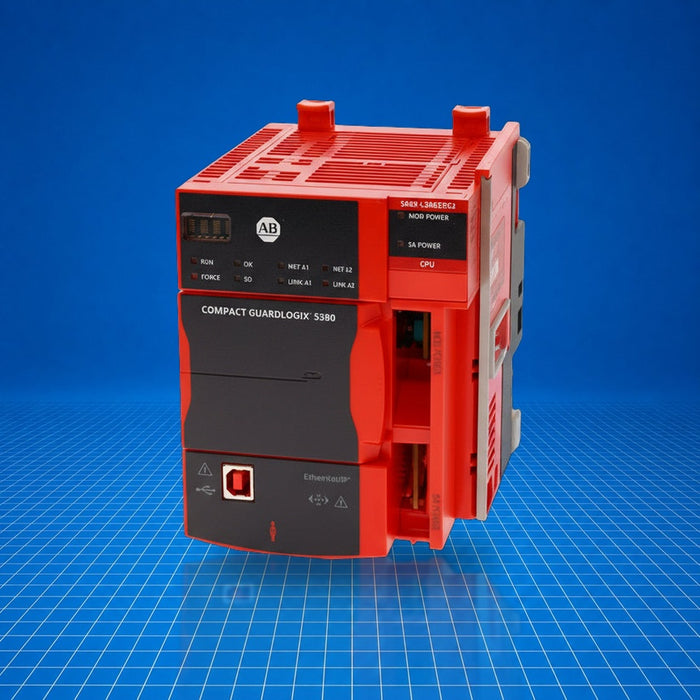

The Allen‑Bradley 5069‑L306ERS2 is a Compact GuardLogix 5380 safety controller delivering robust, real‑time control with integrated safety monitoring (SIL2/PL d). It features 0.6 MB of user program memory and 0.3 MB of safety memory, dual gigabit Ethernet ports with DLR and Dual‑IP capabilities, support for up to 16 EtherNet/IP nodes and 8 local I/O modules. Ideal for mid-size safety-critical machine and process automation systems, this controller integrates seamlessly into Allen‑Bradley CompactLogix networks, offering both safety and performance in a compact, DIN‑rail mounted form factor.
