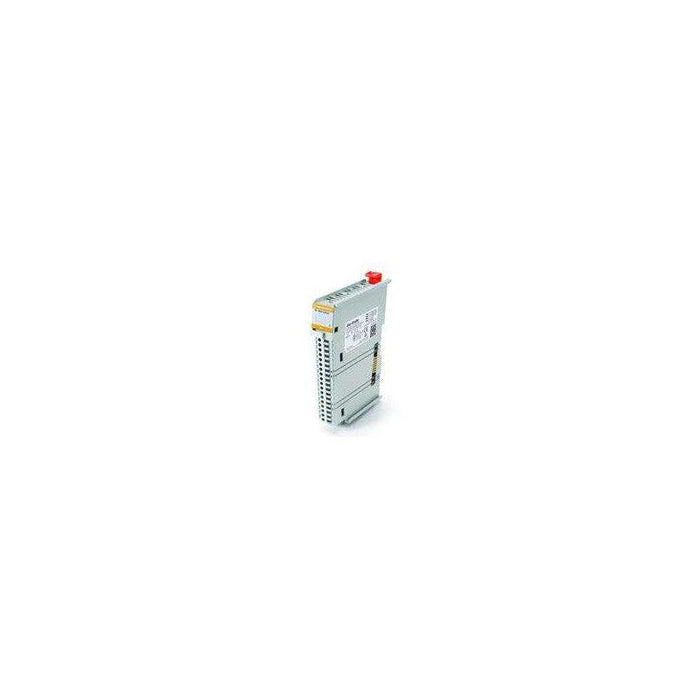

Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-OF4K Allen-Bradley

Name: 5069-OF4K Allen-Bradley
Brand: Allen Bradley
SKU: 5069-OF4K
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5069-OF4K is an Allen-Bradley Compact 5000 I/O analog output module with four configurable voltage or current channels, conformally coated for enhanced environmental resistance. It is part of the Compact I/O platform, intended to interface with CompactLogix and GuardLogix controllers, providing precision analog control in distributed automation systems. Typical installations include process control loops, analog signaling to actuators or control valves, and remote I/O deployments in moderate temperature industrial environments. (Part number 5069-OF4K.)

Best Suited For

Integration with CompactLogix 5000 controllers
Distributed analog signal generation to field devices
Applications requiring flexible output ranges (voltage or current)
Environments requiring conformal coating for moisture or dust resistance

Channels

4

Output types

Voltage or Current

Resolution

16-bit

Power dissipation

3.3 W

Operating Temp

0 … 60 °C

Technical Specifications

I/O & Electrical

Number of channels

4

Output types

Voltage or Current

Output range, voltage

±10 V; 0…10 V; 0…5 V

Output range, current

0…20 mA; 4…20 mA

Resolution

16-bit

Calibrated accuracy @25 °C

0.10% full scale (voltage and current)

Accuracy drift with temperature

Voltage: 0.30% FS; Current: 0.50% FS

Repeatability

0.05%

Conversion time per channel

25 µs

Scan time (group 0-3)

1.0 ms

Step response (to 63%)

Voltage: 18 µs max; Current: 1 ms max

Capacitive load, max (voltage)

1 µF

Inductive load, max (current)

1 mH

Overvoltage protection, max

±32 V DC

Short-circuit detection (voltage mode)

Output limited to ≤ 16 mA

Open-circuit detection (current mode)

Yes

Data format

IEEE 32-bit floating point

Conversion method

R-Ladder DAC, monotonic no missing codes

Communication & Power

MOD power

75 mA @ 18…32 V DC

MOD power passthrough, max

9.55 A @ 18…32 V DC

SA power

150 mA @ 18…32 V DC

SA power passthrough, max

9.95 A @ 18…32 V DC

Power dissipation, max

3.3 W

Thermal dissipation, max

11.3 BTU/hr

Physical & Environmental

Operating temperature

0 … 60 °C

Non-operating temperature

-40 °C

Relative humidity

5…95% non-condensing

Enclosure type

Open-style (none)

Dimensions (W×H×D)

22 mm × 144.57 mm × 105.42 mm

Weight

175 g

Vibration

5 G @ 10…500 Hz

Shock

30 G operating; 50 G non-operating

Mounting

DIN-rail (EN 50022, 35×7.5 mm)

Certifications

China CCCABSRINAUK-EXMorocco DOCEurAsian

Certified to China CCC, American Bureau of Shipping, Registro Italiano Navale, UK EX, Morocco DOC, Eurasian Economic Community as of May 20, 2026.
