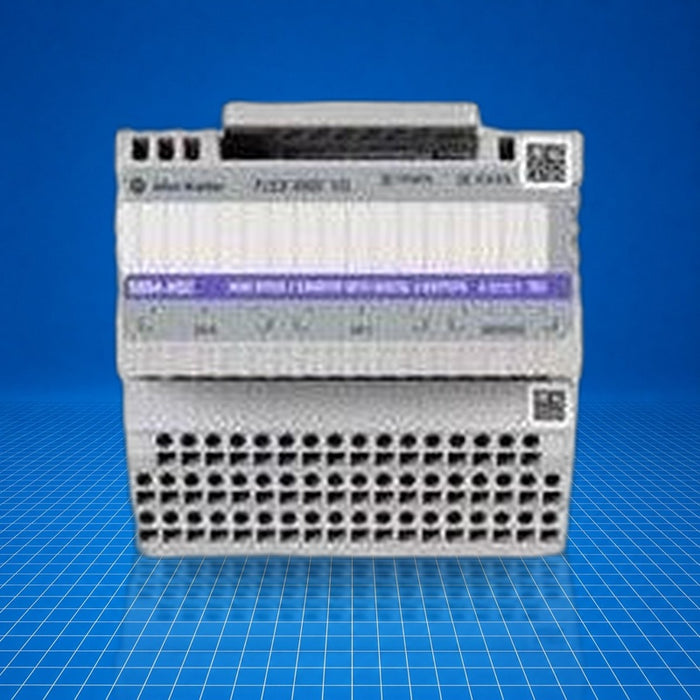

Product image is representative; revision or series may vary.
Contact us to request a specific version.

5094-HSC Allen-Bradley

Name: 5094-HSC Allen-Bradley
Brand: Allen Bradley
SKU: 5094-HSC
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5094-HSC is an Allen-Bradley FLEX 5000 series high-speed counter I/O module. It provides two differential quadrature (ABZ) inputs and four high-speed output channels for counting pulse inputs and issuing fast outputs within a Logix 5000 control system. Designed for distributed I/O installations, it integrates via EtherNet/IP and communicates in a producer-consumer pattern. Typical industrial uses include motion feedback counting, event-driven output triggering, and high-speed monitoring up to microsecond resolution. Part number 5094-HSC is supported within the FLEX 5000 platform.

Best Suited For

Counting encoder pulses (differential ABZ inputs)
Fast output signaling based on counted events
Motion feedback in Logix 5000 control systems
Distributed I/O installations over EtherNet/IP

Differential Inputs

2 ABZ channels

Output Channels

4 channels (common "-")

Pulse Duration

≥ 125 ns

Operating Temperature

-40 °C to +70 °C

Backplane Current

67 mA @ 15 V DC

Technical Specifications

I/O & Electrical

Input voltage (operating)

18 - 32 V DC

Input current per channel (max)

8 mA @ 18 - 32 V DC

Output rating per channel

1 A @ 18 - 32 V DC

Total output current per module

3 A

Backplane power current

67 mA @ 15 V DC

Communication & Power

Pulse duration (min)

125 ns

Pulse interval (min)

100 ns

Power dissipation (max)

3.5 W

Heat dissipation (max)

11.9 BTU/h

Physical & Environmental

Operating temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Enclosure type

Open-style (no enclosure)

Torque (screw-type terminal block)

0.4 N·m (3.5 lb·in)

Corrosion resistance

ISA S71.04 G2

Certifications

ATEXCEcULus ListedIECExKC

ISA S71.04 G2 corrosion resistance class; standard FLEX 5000 module certifications via platform
