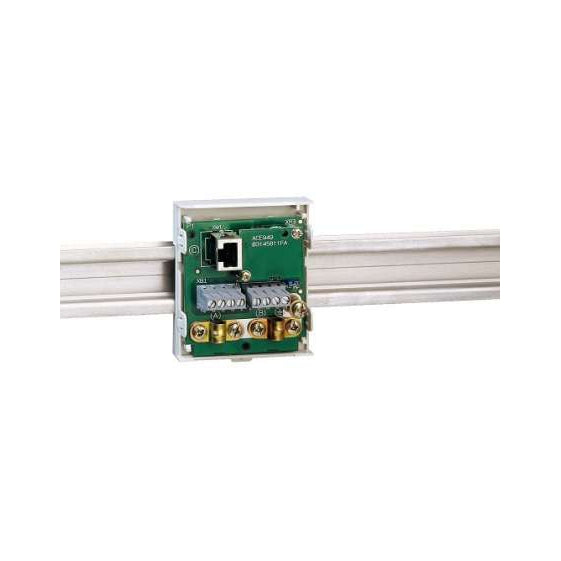

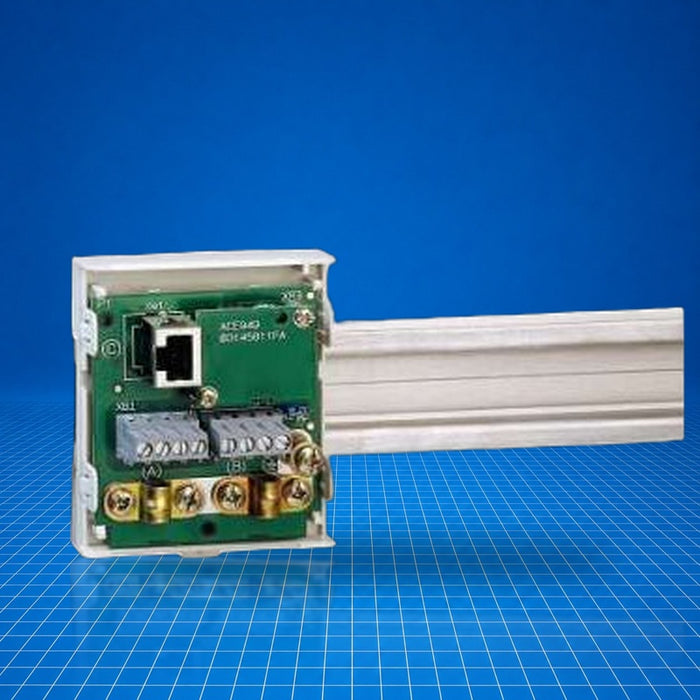

59642 Schneider Electric - ACE949-2

Name: 59642 Schneider Electric - ACE949-2
Brand: Schneider
SKU: 59642
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Schneider Electric ACE949-2 (part number 59642) is a 2-wire RS-485 network interface module used with Sepam series 20, 40, 60, and 80 protection relays. It functions as the electrical interface and network branching box between Sepam relays and a two-wire RS-485 Modbus communication network. It receives its power supply from the Sepam relay and supports either 12 V DC or 24 V DC distributed power, facilitating extended network cable lengths.

Best Suited For

Connecting Sepam protection relays to RS-485 Modbus networks
Distributed power supply over communication line for extended cable runs
Use with Sepam series 20, 40, 60, or 80 relays
DIN-rail or symmetric profile mounting in relay panels
Branched RS-485 network installations

Interface type

RS-485, 2-wire

Power supply

12 V DC or 24 V DC (from Sepam)

Power consumption

16 mA receive / 40 mA transmit

Mounting

DIN symmetrical profile

Operating temperature

-25 °C to +70 °C

Technical Specifications

I/O & Electrical

Interface type

RS-485, 2-wire (differential EIA)

Distributed power supply

12 V DC or 24 V DC ±10% (from Sepam)

Communication & Power

Power consumption (receiving)

16 mA

Power consumption (transmitting)

40 mA max

Physical & Environmental

Mounting

DIN symmetrical profile

Weight

0.1 kg

Operating temperature

-25 °C to +70 °C
