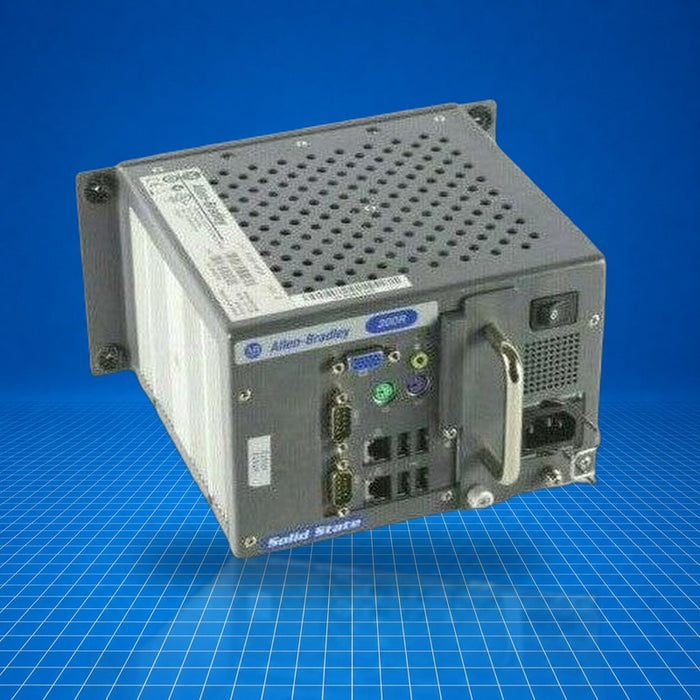

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6155R-NSXPH Allen-Bradley
Original price
$0.00
-
Original price
$2,373.75
Original price
$2,373.75
$0.00
-
$2,373.75
Current price
$2,373.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6155R-NSXPH is an Allen-Bradley VersaView industrial non-display computer, part of the 6155R Series D Standard package. It serves as a fan-less, embedded controller or thin client in control systems requiring basic data processing or HMI interfacing without integrated display. In control system architecture, it operates with external peripherals and network connections, often used for machine mounting, distributed control stations, or remote diagnostics. 6155R-NSXPH is suited for installations where display is provided separately and junction with control networks is required.
Best Suited For
- Machine-level control stations
- Remote diagnostics terminals
- Thin-client implementations with external displays
- Industrial environments needing DIN-rail, VESA, or wall mounting
Package
Standard (non-performance)
Display
External only (no integrated display)
Input Voltage Range
90-264 V AC autoranging or 9-36 V DC autoranging
RAM
256 MB (max 1 GB)
Storage Device
Hard-disk drive (HDD)
Technical Specifications
I/O & Electrical
Input voltage
90-264 V AC autoranging or 9-36 V DC autoranging
Power consumption (AC)
30 W (0.5 A @ 100 V rms, 0.28 A @ 240 V rms)
Power consumption (DC)
30 W (0.84 A @ 36 V DC, 3.34 A @ 9 V DC)
Communication & Power
Ethernet ports
1 RJ45 port (10/100 Mbps)
USB ports
4 USB 2.0 ports
Serial
Serial ports (exact count not specified for NSXPH)
Physical & Environmental
Mounting
Wall, Machine, DIN-Rail, VESA
Operating temp
0…50 °C (32…122 °F)
Storage temp
-20…60 °C (-4…140 °F)
Relative humidity
10-90 % non-condensing
Certifications
cUL-usCEC-TICKRoHS
