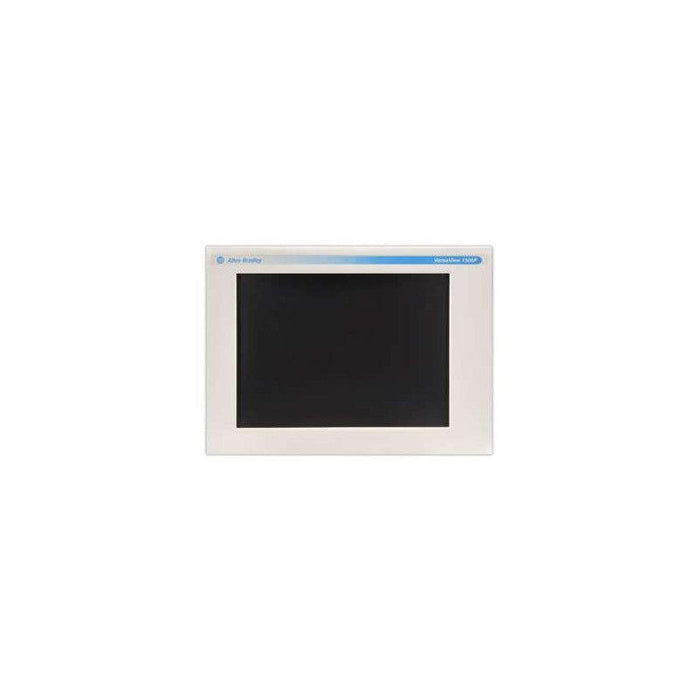

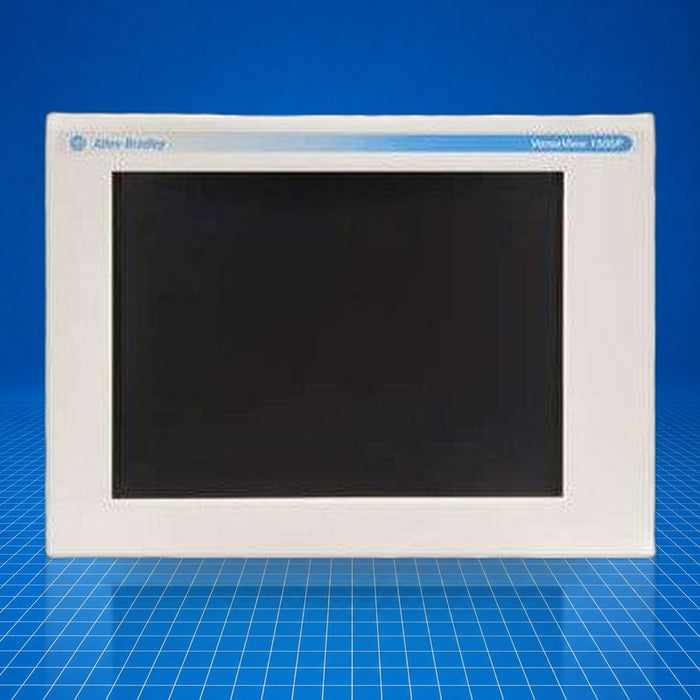

6186-M12AL Allen-Bradley
Original price
$756.25
-
Original price
$2,694.53
Original price
$756.25
$756.25
-
$2,694.53
Current price
$756.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6186-M12AL is a 12-inch (307 mm diagonal) color active-matrix TFT industrial performance monitor in the Allen-Bradley 6186M family. It provides panel-mount display functionality within control systems, offering visual interface capability without touchscreen. Designed for harsh industrial environments-including Class I Division 2 hazardous areas and NEMA 1/12/4/4X, IP66 ratings-it serves as a display terminal for HMI systems in packaging, machine control, and food-and-beverage applications. 6186-M12AL complements Logix and VersaView architectures.
Best Suited For
- Panel-mounted HMI display in industrial control panels
- Hazardous location zones (Class I, Div 2) with aluminum bezel
- Applications requiring robust ingress protection (NEMA 4/4X, IP66)
- Replacement or upgrade in legacy 6186M systems
Display Size
12 in.
Resolution
800 × 600
Color Depth
262K
Environment Rating
Class I Div 2, NEMA 1/12/4/4X, IP66
Bezel Material
Aluminum
Technical Specifications
I/O & Electrical
Physical & Environmental
Display type
Color active-matrix TFT LCD
Display size (diagonal)
12.1 in. (307 mm)
Display area (W × H)
246 × 185 mm (9.7 × 7.3 in.)
Default resolution
800 × 600, 262K colors
Luminance, typical
450 cd/m²
Contrast ratio, typical
600:1
Response time, max
35 ms
Backlight life
50,000 h half-life at 25 °C
Bezel
Aluminum
Certifications/environment
Class I Div 2, NEMA 1/12/4/4X, IP66
