Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

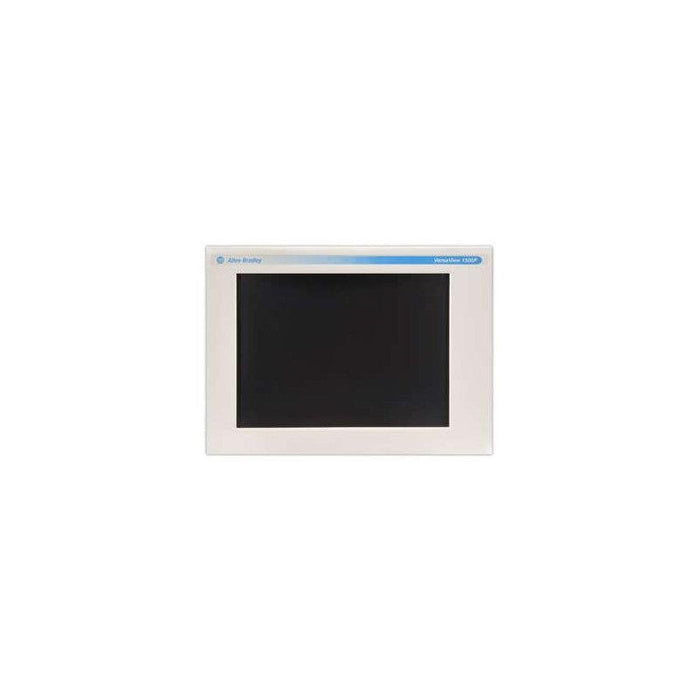

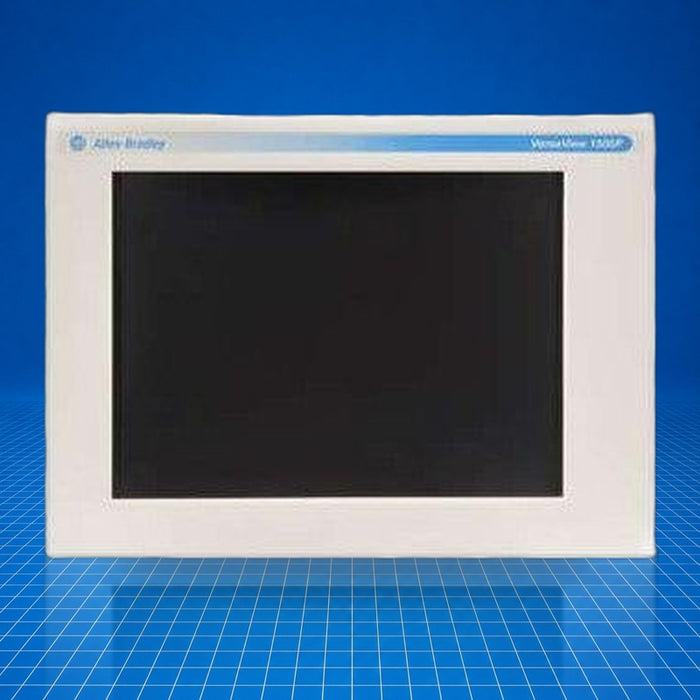

The 6186-M17ALTR is a 17-inch industrial performance monitor in the Allen-Bradley VersaView 6186M series, featuring an aluminum bezel with a resistive touchscreen. It serves as a human-machine interface in industrial control systems, providing visualization and operator interaction. Typical deployments include panel-mounted operator stations, machine-level control interfaces, and factory environment HMIs.
Best Suited For
- Panel-mounted HMI in control panels
- Bench or tabletop operator interface
- Machine-level visualization tasks
- Industrial environments requiring resistive touchscreens
Display Size
17 in.
Touchscreen
Resistive
Input Power
90-264 VAC
Bezel Material
Aluminum
Display Resolution
1280 × 1024
Technical Specifications
I/O & Electrical
Input power (AC)
90-264 VAC
Input voltage (DC, series-wide)
9-36 V DC (24 V nominal)
Communication & Power
Video inputs
VGA (HD-15 analog) and DVI
USB ports
1 front (Aluminum bezel only) + 2 rear USB 2.0, 500 mA each
Physical & Environmental
Display resolution
1280 × 1024, 16.7 M colors
Brightness
260 cd/m² (typical)
Backlight life
50 000 hours half-life
Mounting options
Panel, Rack, Bench/Tabletop, VESA
Operating voltage range (series)
9-36 V DC or 100-240 V AC autoranging
Certifications
UL ListedcUL ListedISA 12.12.01CSACEC-TickRoHS
UL Listed, cUL Listed, ISA 12.12.01, CSA Hazardous Locations, CE, C-Tick, RoHS
