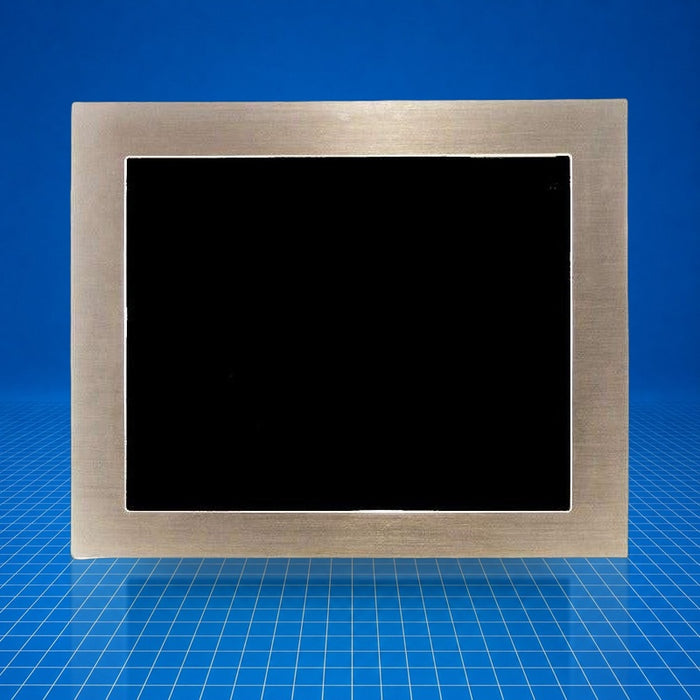

6186-M17SSTR Allen-Bradley
Original price
$1,874.88
-
Original price
$5,063.60
Original price
$1,874.88
$1,874.88
-
$5,063.60
Current price
$1,874.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6186-M17SSTR is a 17-in. industrial performance monitor from the Allen-Bradley 6186M series intended for operator interface within control systems. Constructed with a stainless-steel bezel and resistive touchscreen, this display module provides visual output and touch-based input for industrial equipment, including HMIs, panel-mount systems, or rack installations. The part integrates with PLCs, industrial PCs, or vision systems to present process data, diagnostics, and control elements in manufacturing, packaging, and process industries.
Best Suited For
- Panel-mounted operator interfaces
- HMI applications in wash-down environments
- Rack or bench/Tabletop installation where stainless-steel construction is required
- Integration with Allen-Bradley control systems
Display size
17 in.
Touch interface
Resistive Touchscreen
Bezel material
Stainless-steel
Default resolution
1280 × 1024, 16.7 M colors
Typical luminance
300 cd/m²
Technical Specifications
Physical & Environmental
Display type
Color active-matrix TFT LCD
Display area
338 × 270 mm (13.3 × 10.6 in.)
Default resolution
1280 × 1024
Colors
16.7 M
Luminance (typical)
300 cd/m² (Nits)
Contrast ratio (typical)
1000:1
Response time (max)
8 ms
Backlight life
50 000 h to half-life at 25 °C (77 °F)
Bezel options
Stainless-steel
Touchscreen option
Resistive antiglare (model dependent)
Approx. weight
10.1 kg (22.25 lb)
