6DR2100-5 Siemens
Original price
$0.00
-
Original price
$2,073.93
Original price
$2,073.93
$0.00
-
$2,073.93
Current price
$2,073.93
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

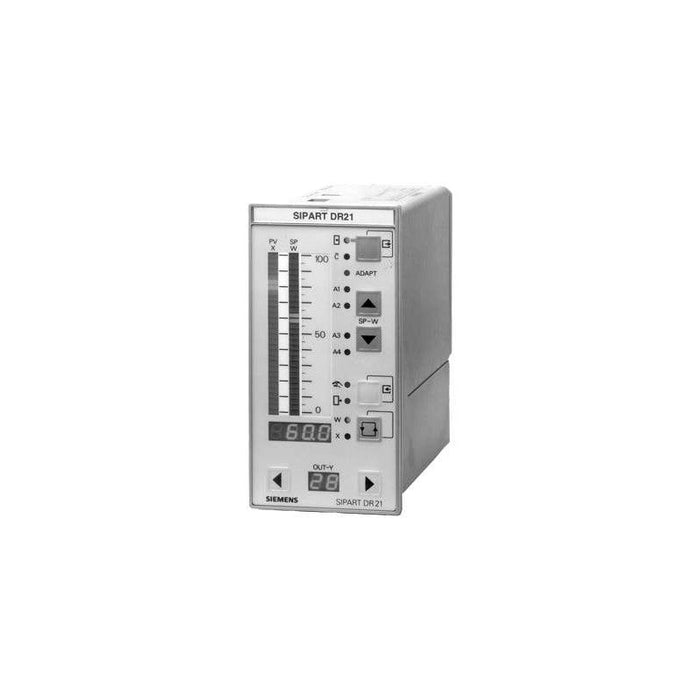

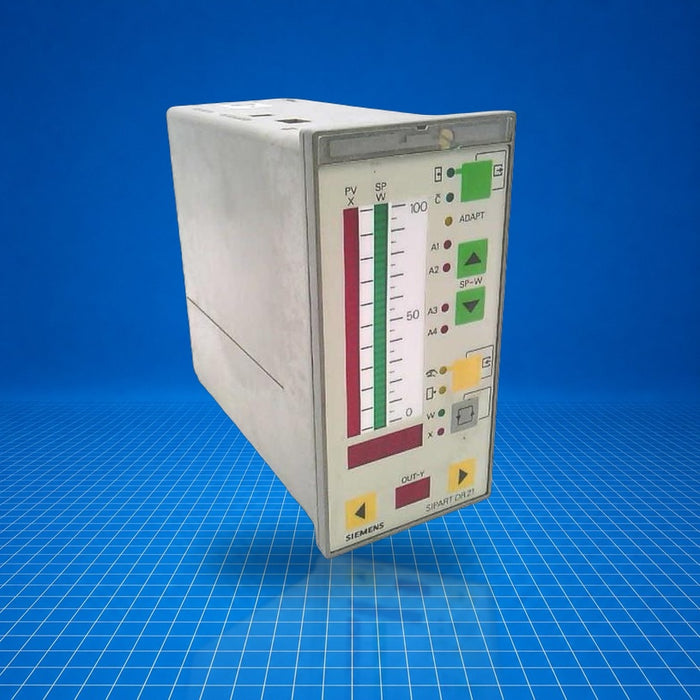

The Siemens SIPART DR21 process controller (Siemens part number 6DR2100-5) is a panel-mount controller in a 72 × 144 mm format. It includes two analog inputs, two binary inputs, one analog output, two relay outputs, and two binary outputs. The 6DR2100-5 variant offers a switchable auxiliary power supply between 115 V AC and 230 V AC. It is used to perform closed-loop control tasks in industrial process automation, such as regulating pressure, temperature, or flow within control cabinets or distributed control systems.
Best Suited For
- Panel-mount process control loops
- Retrofitting existing SIPART DR installations
- Control of thermal, pressure or flow parameters
- Systems requiring switchable AC auxiliary supply (115 V / 230 V AC)
- Integration with Siemens signal converter modules
Analog inputs
2
Binary inputs
2
Analog output
1
Relay outputs
2
Auxiliary supply
115 V AC / 230 V AC selectable
Technical Specifications
I/O & Electrical
Analog inputs
2
Binary inputs
2
Analog output
1
Relay outputs
2
Binary outputs
2
Communication & Power
Auxiliary supply (as delivered)
230 V AC
Auxiliary supply options
Selectable 115 V AC or 230 V AC
Physical & Environmental
Panel size
72 × 144 mm
Operating temperature
0 to +50 °C
Installation orientation
Any
Front operating unit enclosure
IP64
Housing / terminals enclosure
IP30 / IP20
