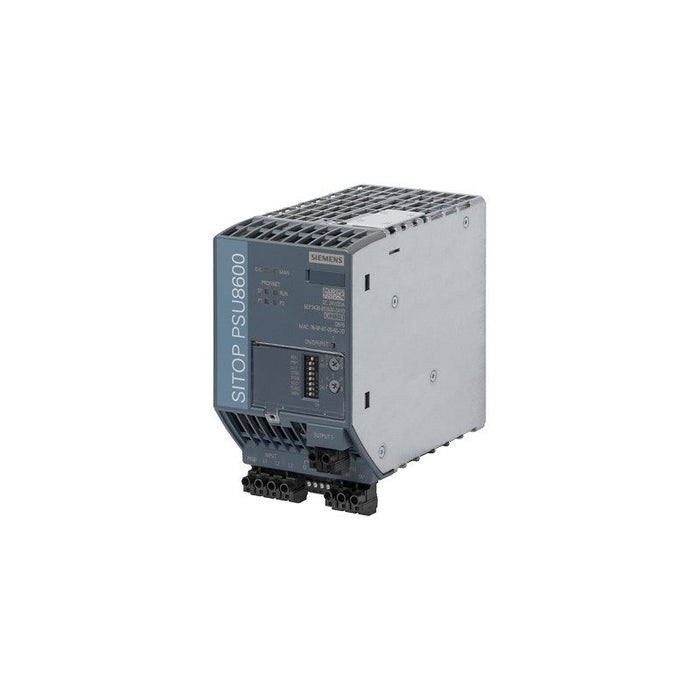

6EP3436-8SB00-2AY0 Siemens

Name: 6EP3436-8SB00-2AY0 Siemens
Brand: Siemens
SKU: 6EP3436-8SB00-2AY0
Price: 1069.75 USD
Availability: OutOfStock

Sold out

$0.00 - $1,069.75

$1,069.75

$0.00 - $1,069.75

$1,069.75

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens part number 6EP3436-8SB00-2AY0 is a SITOP PSU8600 series three-phase AC to 24 V DC, 20 A stabilized power supply. It provides a regulated 24 V DC output suitable for industrial control systems requiring consistent power under variable loads. The integrated Profinet/Ethernet interface and web server functions allow for remote monitoring and diagnostics. This power supply is typically used in process control panels, automation cabinets, and machine tool installations operating from 400-500 V AC three-phase supplies. The part supports buffering and power-boost features in transient conditions.

Best Suited For

Feeding 24 V DC control loads in automation cabinets
Systems requiring networked power monitoring via Profinet/IE
Machines subject to brief power interruptions requiring buffering
Installation on 400-500 V AC three-phase distribution

Output current

20 A

Input voltage range

3 AC 320-575 V (derating < 360 V or > 530 V)

Power consumption (full-load)

514 W

Operating temperature

-25 … 60 °C

Dimensions (W×H×D)

80 × 125 × 150 mm

Technical Specifications

I/O & Electrical

Rated output voltage

24 V DC

Rated output current

20 A

Output setting range

4-28 V (via front potentiometer)

Max output power

480 W

System overload (5 s/min)

30 A

Power boost (25 ms)

60 A

Residual ripple

≤ 100 mV

Communication & Power

Input voltage range

3 AC 400-500 V nominal

Input voltage operational range

3 AC 320-575 V

Input current (at 400 V)

1.4 A

Input current (at 500 V)

1.1 A

Inrush current limit (25 °C)

14 A

Power consumption at full load

514 W

Physical & Environmental

Dimensions (W×H×D)

80 × 125 × 150 mm

Operating temperature

-25 … 60 °C

Humidity (non-condensing)

5-95 %

Protection class / Pollution degree

Overvoltage category II to 2000 m; Pollution degree 2

Certifications

RoHSWEEE

RoHS compliant since 01.09.2015; WEEE take-back obligation applies.
