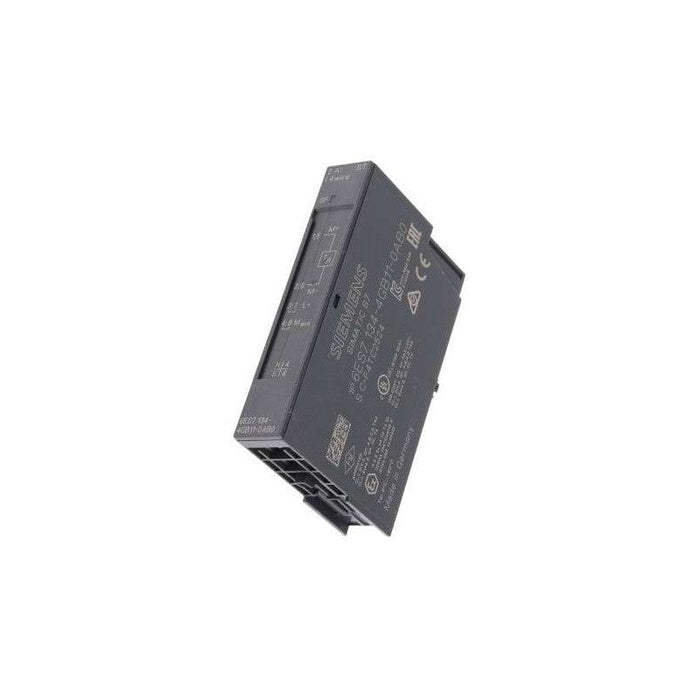

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7134-4GB11-0AB0 Siemens
Original price
$375.00
-
Original price
$1,296.85
Original price
$1,296.85
$375.00
-
$1,296.85
Current price
$1,296.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7134-4GB11-0AB0 is an electronic I/O module for the SIMATIC ET 200S distributed I/O system. Designed as a spare part, this module provides two analog current inputs suitable for standard two- or four-wire transmitters. It handles signal ranges of -20 mA to +20 mA and 4 mA to 20 mA, with a resolution of up to 14 bit including sign. It integrates into PROFIBUS DP networks, offering diagnostics via a group-fault LED, and occupies 15 mm of DIN-rail mounting width. Common industrial applications include analog signal acquisition in process control and factory automation. (6ES7134-4GB11-0AB0)
Best Suited For
- Distributed analog signal acquisition in ET 200S systems
- Integration with two-wire and four-wire current transmitters
- PROFIBUS DP I/O expansion in control cabinets
- Environments requiring group-fault diagnostics
Analog inputs
2
Signal ranges
-20 mA to +20 mA; 4 mA to 20 mA
Resolution
Up to 14 bit (±20 mA)
Power consumption
Typically 0.6 W
Width
15 mm
Technical Specifications
I/O & Electrical
Number of analog inputs
2
Input ranges
-20 mA to +20 mA; 4 mA to 20 mA (50 Ω)
Permissible input current (destruction limit)
40 mA
2-wire transmitter burden max.
750 Ω
Common-mode interference suppression
≥ 70 dB
Crosstalk between inputs
≥ -50 dB
Accuracy (overall temp range)
± 0.6 %
Basic error limit (25 °C)
± 0.4 %
Temperature error
± 0.005 %/K
Linearity error
± 0.01 %
Repeatability
± 0.05 % (typical)
Communication & Power
Rated load voltage (L+)
24 V DC (from power module)
Current from L+ (no load), max.
30 mA
Current from backplane bus (3.3 V), max.
10 mA
Power dissipation
Typically 0.6 W
Group-fault LED
Yes (red SF)
Diagnostics (wire-break, overflow/underflow)
Configurable
Physical & Environmental
Width
15 mm
Height
81 mm
Depth
52 mm
Weight
Approx. 40 g
Shielded cable length, max.
200 m
Insulation tested
500 V DC
Isolation between inputs and backplane bus
Yes
Isolation between inputs and L+
No
