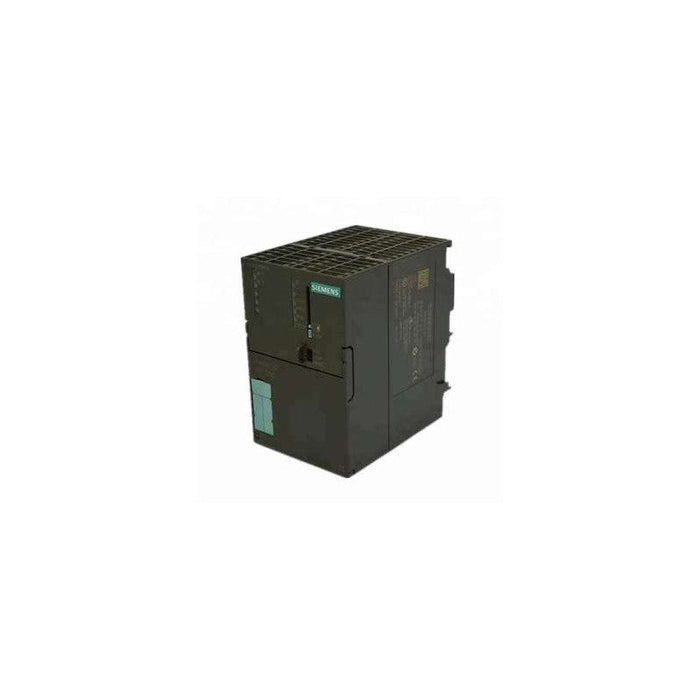

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

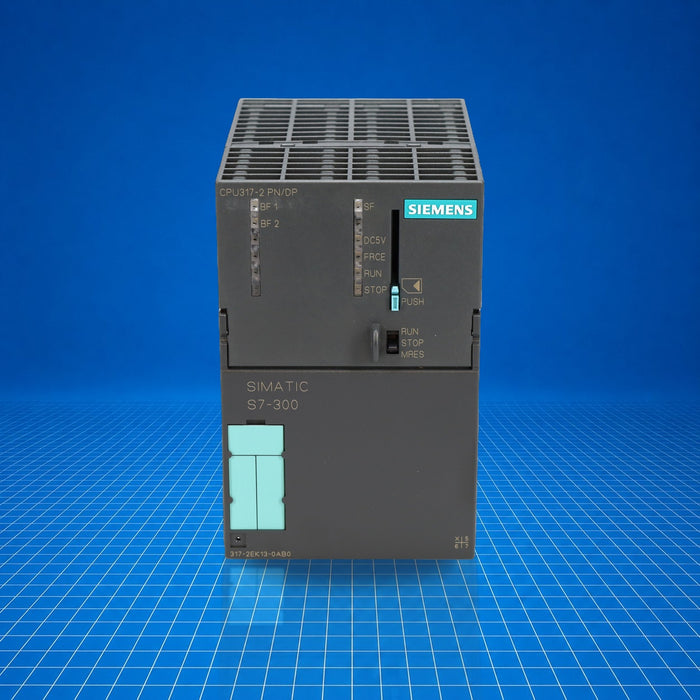

6ES7317-2EK13-0AB0 Siemens
Original price
$1,099.97
-
Original price
$11,262.00
Original price
$1,099.97
$1,099.97
-
$11,262.00
Current price
$1,099.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The SIMATIC S7-300 CPU 317-2 PN/DP (6ES7317-2EK13-0AB0) is a central processing unit within the Siemens S7-300 modular PLC platform. It combines an MPI/PROFIBUS DP interface and an integrated PROFINET (Ethernet) interface with a two-port switch. It provides 1 MB of integrated work memory and uses a micro-memory card (MMC) for load memory. Typical applications include distributed automation via PROFINET, coupling with PROFIBUS DP networks, and industrial control where local CPU logic execution and communication are required. Part number 6ES7317-2EK13-0AB0.
Best Suited For
- Distributed PROFINET-based station control
- Integration with PROFIBUS DP networks via MPI/DP
- Applications requiring moderate program memory (1 MB work memory)
- Situations needing MMC-based program storage and retention
Work memory
1 024 kbyte
Integrated interfaces
MPI/DP + PROFINET (2-port switch)
Load memory medium
Micro-Memory Card (MMC)
Power supply
24 V DC ± range
Weight
340 g
Technical Specifications
I/O & Electrical
Supply voltage (rated)
24 V DC
Permissible supply range
20.4 V-28.8 V
Current consumption (typical, no-load)
150 mA
Current consumption (rated)
750 mA
Inrush current (typical)
4 A
Power loss (typical)
4.65 W
Communication & Power
MPI/PROFIBUS DP interface
Integrated RS-485, up to 12 Mbit/s
PROFINET interface
Integrated 10/100 Mbit/s, 2-port switch, updating time 250 µs-512 ms
Physical & Environmental
Width
40 mm
Height
125 mm
Depth
130 mm
Weight
340 g
Certifications
ULCERCMEACATEXFM
