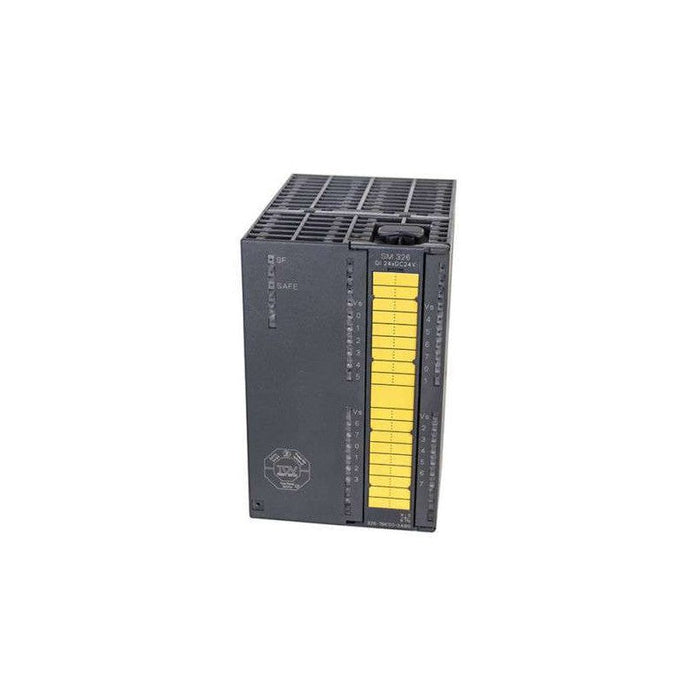

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7326-1BK00-0AB0 Siemens
Original price
$657.25
-
Original price
$3,617.25
Original price
$657.25
$657.25
-
$3,617.25
Current price
$657.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7326-1BK00-0AB0 is a SIMATIC S7-300 SM 326 fail-safe digital input module with 24 DC 24 V inputs. It integrates into Siemens S7 F-systems using PROFIsafe communication for safety-rated control. The module monitors multiple safety inputs such as emergency stops or safety door sensors, enabling certified safety functions (e.g., SIL 3 / PLe). It serves in applications requiring functional safety and diagnostics within distributed automation environments.
Best Suited For
- Integration into S7-300 fail-safe (F-) systems with PROFIsafe
- Monitoring of up to 24 safety-rated digital inputs (e.g., e-stop, interlocks)
- Applications requiring safety certification to SIL 3 / PLe levels
- Replacement or spare in safety I/O racks
Channels
24 DC inputs
Input voltage
24 V DC
Power loss (typ.)
10 W
Input current (from L+)
≤ 450 mA
Safety certification
Category 4 / SIL 3 / PLe
Technical Specifications
I/O & Electrical
Number of digital inputs
24
Rated input voltage
24 V DC
Input "0" voltage range
-30 to +5 V
Input "1" voltage range
+11 to +30 V
Input current per "0", max.
2 mA
Input current typ. for "1"
10 mA
Simultaneously controllable inputs up to 40 °C
24
Simultaneously controllable inputs up to 60 °C
24 (at 24 V) or 18 (at 28.8 V)
Communication & Power
Supply current from L+
≤ 450 mA
Supply current from backplane 5 V
≤ 100 mA
Power loss (typical)
10 W
Physical & Environmental
Cable length, shielded, max.
200 m
Cable length, unshielded, max.
100 m
Certifications
Category 4SIL 3PLe
Certified to Category 4 (EN 954-1), SIL 3 (IEC 61508), PLe (ISO 13849). Recorded diagnostics alarms for safety functions.
