6ES7505-0KA00-0AB0 Siemens
Original price
$0.00
-
Original price
$375.93
Original price
$375.93
$0.00
-
$375.93
Current price
$375.93
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

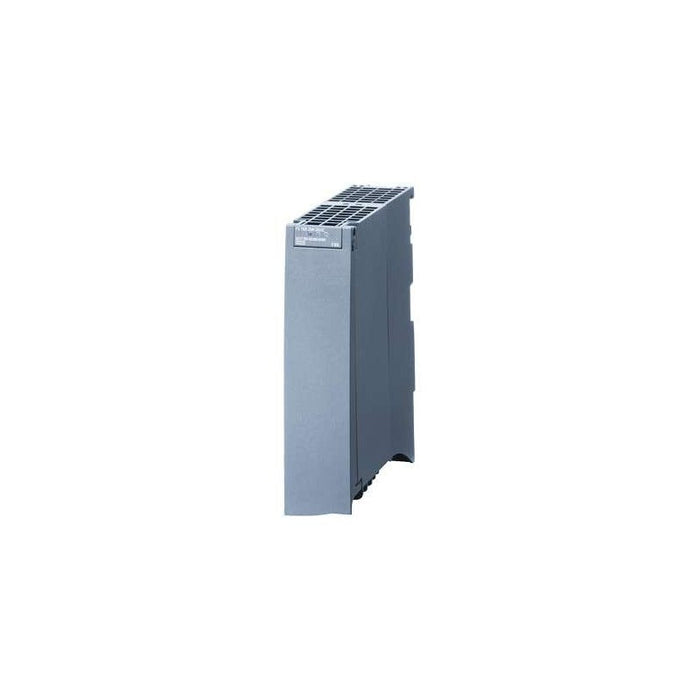

The 6ES7505-0KA00-0AB0 is a Siemens SIMATIC S7-1500 system power supply module (PS 25W 24 V DC). It provides the backplane bus of the S7-1500 automation system with a 24 V DC supply. Designed for integration with STEP 7 in TIA Portal (from version V12) or STEP 7 (from V5.5 SP3), this module supports short-circuit and reverse-polarity protection, and offers a power-failure buffer. It is typically employed in control cabinets to power central processing units and I/O modules within S7-1500 control systems. Part number: 6ES7505-0KA00-0AB0.
Best Suited For
- Powering S7-1500 CPU and I/O backplane
- Integration into S7-1500 control cabinets via TIA Portal V12 or higher
- Applications requiring 24 V DC system power with backup buffering
- Environments requiring basic protection (short-circuit, reverse polarity)
Output power
25 W
Input voltage range
19.2 … 28.8 V (static) 18.5 … 30.2 V (dynamic)
Input current @24 V
1.3 A
Power loss
6.2 W
Ambient temperature (operating)
-25 … 60 °C
Technical Specifications
I/O & Electrical
Rated input voltage
24 V DC
Permissible input, lower limit (static)
19.2 V
Permissible input, upper limit (static)
28.8 V
Permissible input, lower limit (dynamic)
18.5 V
Permissible input, upper limit (dynamic)
30.2 V
Input current (rated)
1.3 A
Output power provided to backplane
25 W
Power loss (nominal)
6.2 W
Reverse-polarity protection
Yes
Short-circuit protection
Yes
Power-failure buffer time
20 ms
Communication & Power
Status indicator
Yes
Physical & Environmental
Ambient temperature, min
-25 °C
Ambient temperature, max
60 °C
Electrical isolation test voltage
707 V DC (type test)
