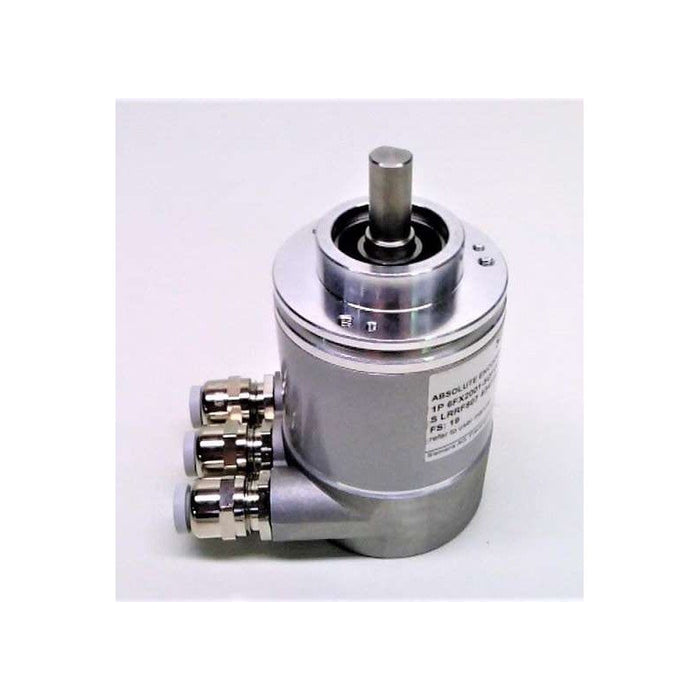

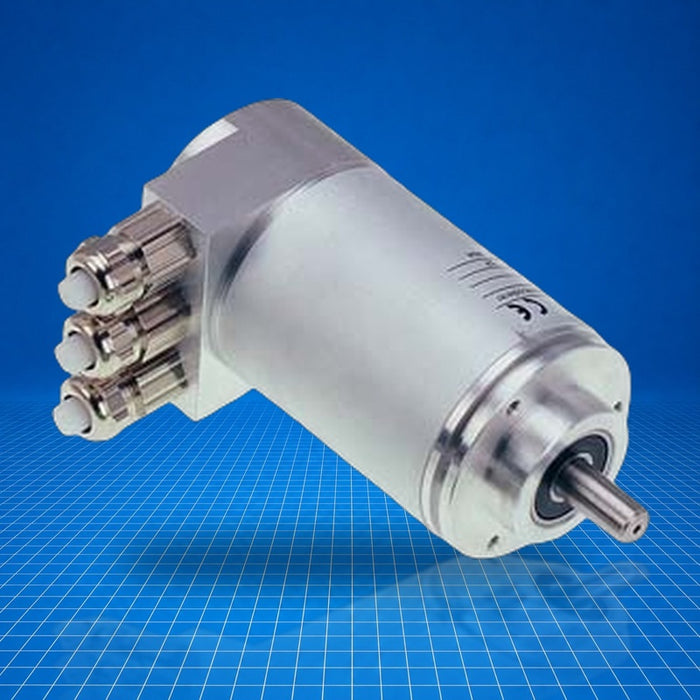

6FX2001-5QP24 Siemens

Name: 6FX2001-5QP24 Siemens
Brand: Siemens
SKU: 6FX2001-5QP24
Price: 1155.0 USD
Availability: InStock

$1,155.00 - $2,790.00

$1,155.00

$1,155.00 - $2,790.00

$1,155.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6FX2001-5QP24 is a 27-bit single-turn absolute value encoder with PROFIBUS DP interface, designed to provide precise position feedback within motion control systems. It belongs to Siemens' family of absolute encoders with PROFIBUS DP and interfaces with drives and controllers. Typical industrial use cases include servo and drive position detection, synchronization in automated machinery, and integration into PROFIBUS DP networks for real-time position feedback. 6FX2001-5QP24 is often specified in applications requiring accurate rotational measurement under industrial environmental conditions.

Best Suited For

PROFIBUS DP-based motion control systems
Single-turn position feedback in servo drives
On-machine encoder replacement or retrofit
Industrial automation with wide ambient temperature range
Applications requiring IEC IP67 protection at housing

Resolution (single-turn)

27-bit

Interface

PROFIBUS DP-V2

Operating voltage

DC 10 … 30 V

Protection (housing)

IP67

Ambient temperature

-40 … 85 °C

Technical Specifications

I/O & Electrical

Operating voltage

10 … 30 V DC

Interface

PROFIBUS DP-V2 (RS-485)

Communication & Power

Transmission rate

Up to 12 Mbit/s

Clock input/output

Differential RS-485 receiver/driver

Physical & Environmental

Resolution (per revolution)

Any 1 … 8192

Total resolution

Any 1 … 8192 × 16384

Max speed (± 1 LSB accuracy)

5 800 rpm

Max mechanical speed

6 000 rpm

Friction torque (at 20 °C)

≤ 0.01 Nm

Starting torque (at 20 °C)

≤ 0.01 Nm

Angular acceleration, max.

100 000 rad/s²

Vibration (55…2000 Hz)

100 m/s²

Shock (max)

1 000 m/s² (housing), 6 000 m/s² (shaft input)

Enclosure rating

IP67 (housing), IP64 (shaft input)

Ambient temperature, operation

-40 … 85 °C

Net weight

0.5 kg

Certifications

Compliant with EMC standards DIN EN 50081 and EN 50082; CE and cULus marked per Siemens technical data.
