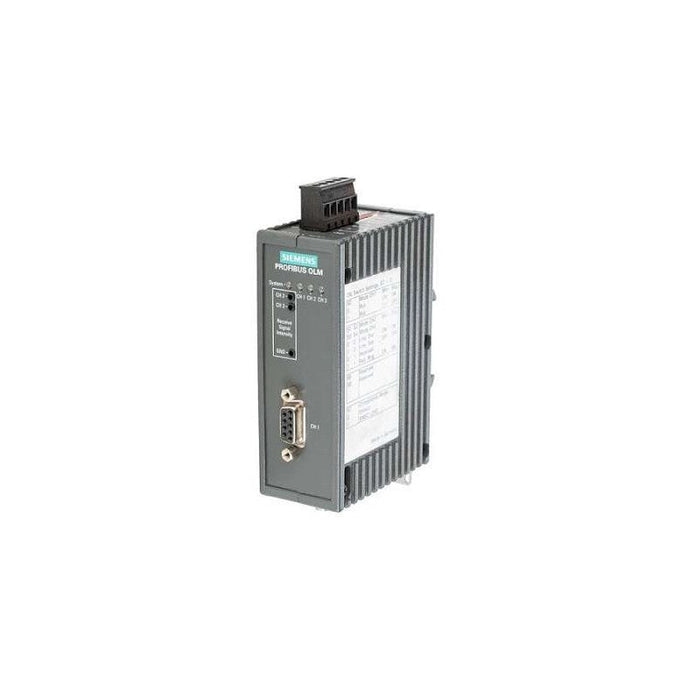

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6GK1502-3CB00 Siemens
Original price
$951.50
-
Original price
$2,101.44
Original price
$951.50
$951.50
-
$2,101.44
Current price
$951.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

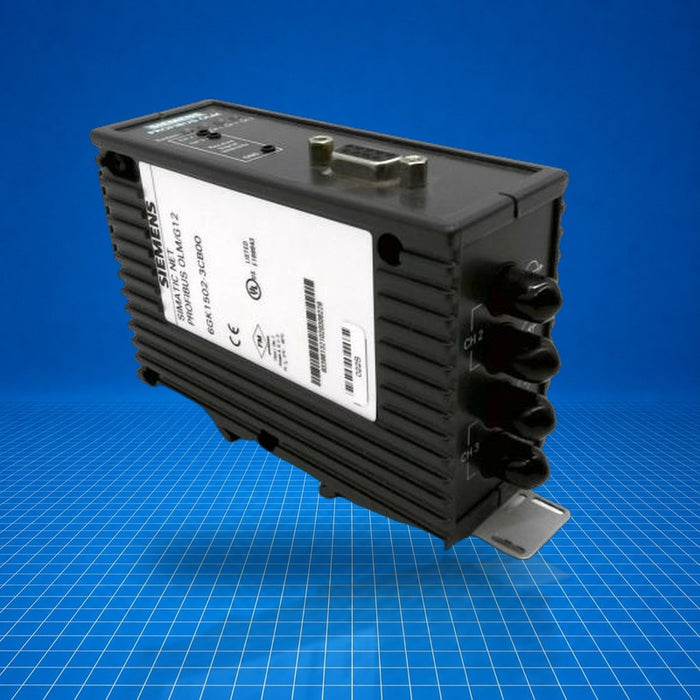

The Siemens 6GK1502-3CB00 is a SIMATIC NET PROFIBUS Optical Link Module (OLM/G12, Version 3) that provides galvanically isolated PROFIBUS interface via RS-485 and optical fiber (BFOC ports) for extending network segments or implementing redundant rings. It supports standard industrial environments requiring optical and electrical PROFIBUS connectivity and line-monitoring in factory automation and distributed control systems. The 6GK1502-3CB00 enables integration of PROFIBUS networks where distance extension and fault localization are required.
Best Suited For
- Extending PROFIBUS networks via multimode glass fiber
- Redundant ring topologies with line-monitoring
- Applications needing galvanic isolation between RS-485 and fiber
- Industrial PROFIBUS segment installations
Transmission speed range
9.6 kbit/s … 12 Mbit/s (incl. 45.45 kbit/s)
Optical interfaces
2 BFOC ports (glass FOC)
RS-485 interface
1 Sub-D 9 (bus connector required)
Signaling contact
1, 24 V DC / 0.1 A max
Technical Specifications
I/O & Electrical
Transmission rate
9.6 kbit/s … 12 Mbit/s (incl. 45.45 kbit/s)
Signaling contact voltage
24 V DC
Signaling contact current
0.1 A max
Communication & Power
RS-485 interface
1 Sub-D 9 (bus connector required)
Physical & Environmental
Optical interface design
2 glass FOC (BFOC) ports
Max fiber length (50/125 µm & 62.5/125 µm)
3 km
