Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

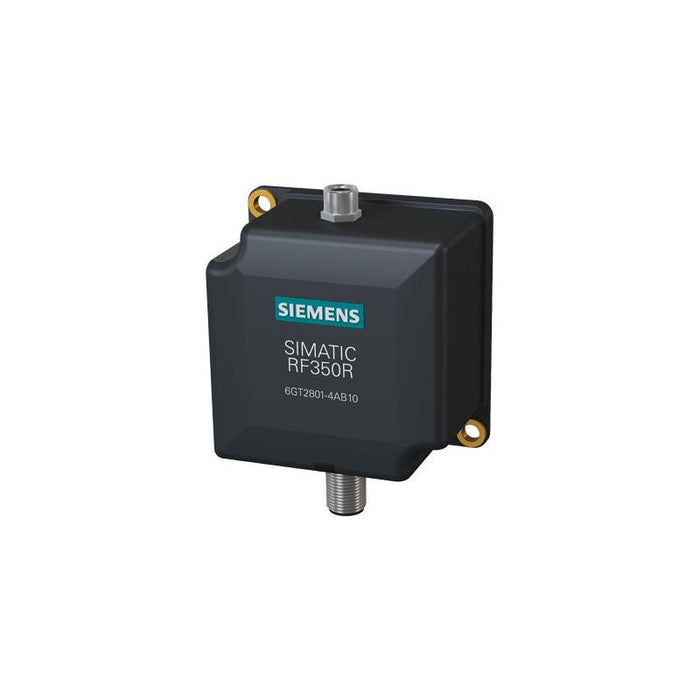

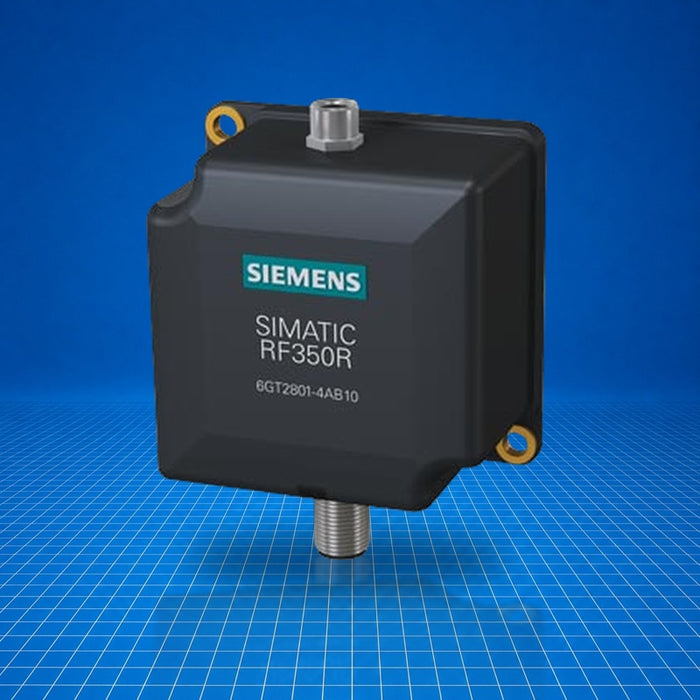

The 6GT2801-4AB10 is a Siemens SIMATIC RF350R RFID reader (SIMATIC RF300 family) designed for HF (13.56 MHz) transponder communication. It functions as a stationary reader in control systems, interfacing via RS-422 (3964R protocol) to communication modules. Typical applications include asset tracking, work-in-process monitoring, and automation systems requiring RFID data capture in industrial environments.

Best Suited For

  • Integration with SIMATIC RF300/ISO 15693 transponders
  • Connection to RS-422-based communication modules
  • Environments requiring IP65-rated RFID readers
  • Industrial tracking in manufacturing or logistics
Operating frequency
13.56 MHz
Interface
RS-422 (3964R) via M12 8-pin
Supply voltage
20.4 … 28.8 V DC
Protection rating
IP65
Dimensions W × H × D
75 × 41 × 75 mm

Technical Specifications

I/O & Electrical

Supply voltage (DC)
20.4 … 28.8 V DC
Typical current consumption
0.1 A

Communication & Power

Operating frequency
13.56 MHz
Communication protocol
RS-422 (3964R)
External antenna connector
M8 4-pin
Reader connector
M12 8-pin

Physical & Environmental

Ambient temperature, operation
-25 … +70 °C
Ambient temperature, storage/transport
-40 … +85 °C
Enclosure rating
IP65
Shock resistance
500 m/s²
Vibration resistance
200 m/s²
Material
PA 12 plastic
Colour
Anthracite
Recommended mounting distance to metal
0 mm
Dimensions (W×H×D)
75 × 41 × 75 mm
Weight (net)
0.25 kg
Mounting
2× M5 screws
Antenna cable length
3 m
Max RS-422 cable length
1000 m

Certifications

CEFCCUL/CSAEx II 3G/II 3D

Compliance with EN 300 330, EN 301 489; approved per CE, FCC, UL/CSA; explosion protection Ex II 3G Ex nA nC IIB T5 and II 3D Ex tD A22 IP6x T80 °C; MTBF ≈ 140 years.
