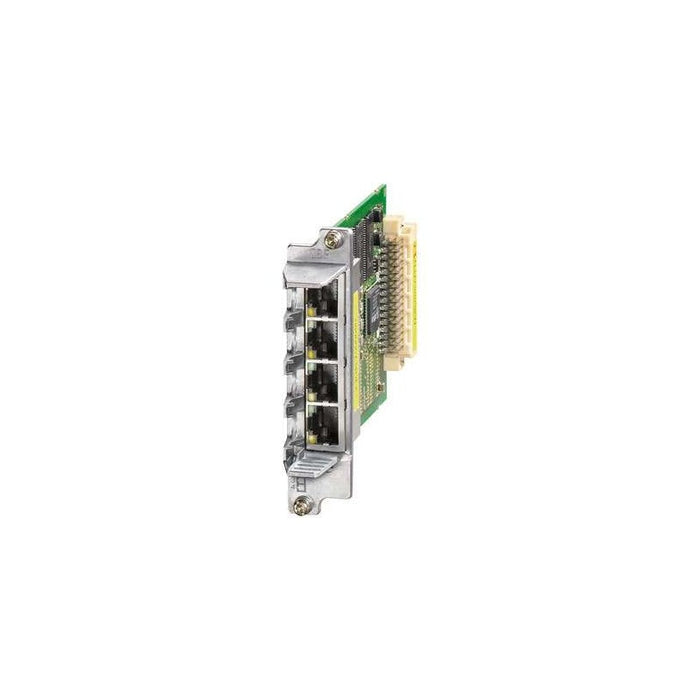

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3055-0AA00-2EB0 Siemens
Original price
$1,805.00
-
Original price
$2,630.36
Original price
$1,805.00
$1,805.00
-
$2,630.36
Current price
$1,805.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3055-0AA00-2EB0 is a SINAMICS S120 CBE20 PROFINET communication board. It functions as a PROFINET IO device on SINAMICS G130 or G150 drive systems, providing integrated 4-port Ethernet switching and enabling real-time control (RT and IRT classes) of drive systems over 100 Mbit/s links. Typical applications include configuring line, star, or tree network topologies in modular drive architectures, connecting to controllers via PROFINET, and supporting engineering via TCP/IP and STARTER tool integration.
Best Suited For
- SINAMICS G130 / G150 drive PROFINET connectivity
- Real-time control via PROFINET IO (RT / IRT)
- Inline or star network topologies without external switches
- Commissioning via Siemens STARTER tool
Function
PROFINET IO communication board
Ports
4 × RJ45 switched Ethernet
Data rate / Modes
100 Mbit/s, supports RT and IRT (≥ 500 µs)
Control integration
Configurable via TCP/IP and STARTER
Technical Specifications
I/O & Electrical
Current requirement (24 V DC)
0.16 A
Power loss, max.
2.4 W
Communication & Power
Ethernet ports
4 × RJ45
Link speed
100 Mbit/s full duplex
Physical & Environmental
Weight, approx.
0.1 kg
Certifications
cULus
cULus certification
