6SL3055-0AA00-2TA0 Siemens
Original price
$825.00
-
Original price
$987.25
Original price
$825.00
$825.00
-
$987.25
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

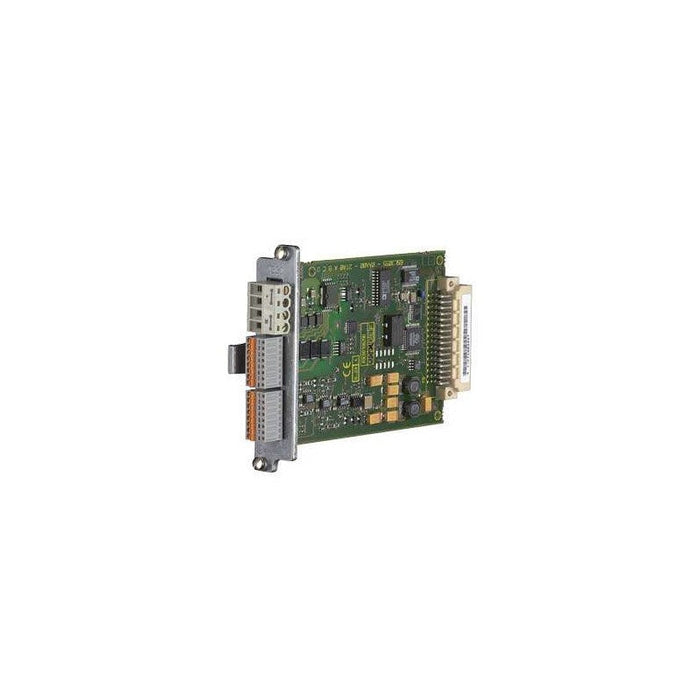

The Siemens 6SL3055-0AA00-2TA0 is a TB30 Terminal Board in the SINAMICS / SIMOTION platform, designed to interface with Control Unit CU320-X and SIMOTION D4x5-X devices. It provides extension for digital inputs/outputs and analog inputs/outputs, enabling flexible sensor and actuator connections in motion control systems. It is part of the SINAMICS supplementary component family and typically installs in the option slot on CU320 or SIMOTION control units, enabling compact on-machine I/O expansion.
Best Suited For
- On-machine I/O expansion for SIMOTION D4x5 control units
- Extending CU320-X control unit interfaces
- Small motion control systems requiring compact analog/digital I/O
- Industrial automation systems requiring direct TB30 integration
Digital inputs / outputs
4 / 4
Analog inputs / outputs
2 / 2
Power loss, max.
3 W
Protection rating
IP20
Weight, approx.
0.1 kg
Technical Specifications
I/O & Electrical
Digital input voltage range
-3 … 30 V
Digital input low level
-3 … 5 V
Digital input high level
15 … 30 V
Digital input current consumption at 24 V DC, typ.
6 mA
Digital input delay L→H / H→L, approx.
50 µs / 100 µs
Digital output voltage
24 V DC
Digital output load current, max.
500 mA
Digital output delay, approx.
150 µs
Analog input range
-10 … +10 V
Analog input internal resistance
65 kΩ
Analog input resolution
13 bit + sign
Analog output range
-10 … +10 V
Analog output max load current
-3 … +3 mA
Analog output resolution
11 bit + sign
Analog output settling time, approx.
200 µs
Communication & Power
Current requirement at 24 V DC (via Control Unit)
0.05 A
Physical & Environmental
Conductor cross-section, max.
0.5 mm²
Power loss, max.
3 W
Weight, approx.
0.1 kg
Protection rating
IP20
Certifications
cULus
Certificate of suitability: cULus
