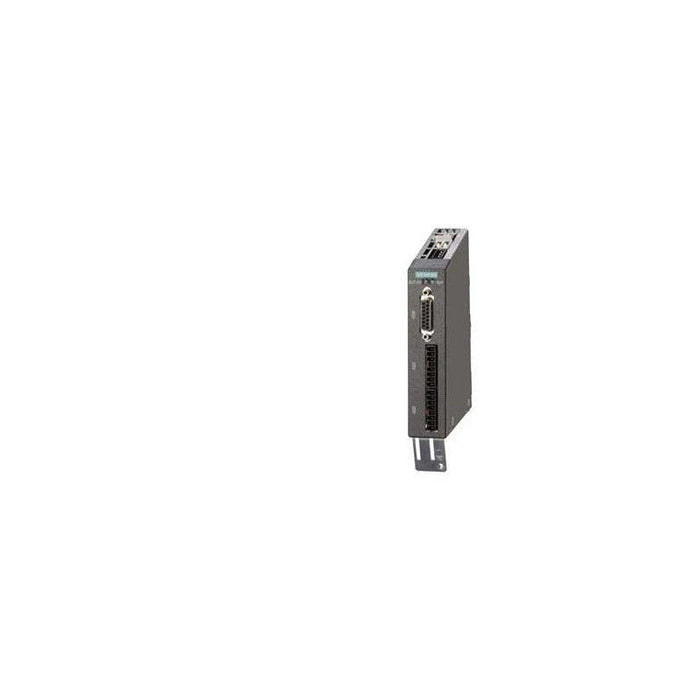

6SL3055-0AA00-5CA1 Siemens
Original price
$596.00
-
Original price
$1,240.22
Original price
$596.00
$596.00
-
$1,240.22
Current price
$596.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3055-0AA00-5CA1 is a cabinet-mounted sensor module (SMC30) within the Siemens SINAMICS system platform. It supplies electronics and encoder power, processes SSI encoder signals, and supports feedback evaluation. Installed within SINAMICS servo and drive assemblies, its role is to supply power to measuring systems (e.g. encoders) and handle encoder data up to 250 kHz. It enables accurate position feedback in motion control loops.
Best Suited For
- SINAMICS S120 systems using SMC30 sensor modules
- SSI or square-wave encoder feedback integration
- Cabinet-mounted installation in motion control panels
- Servo axis feedback supply and evaluation
Electronics supply voltage
24 V DC (20.4-28.8 V DC)
Electronics current (no encoder)
≤ 0.20 A
Electronics current (with encoder)
≤ 0.35 A
Encoder supply voltage
5 V DC
Encoder current
0.35 A
Technical Specifications
I/O & Electrical
Electronics supply voltage
24 V DC (20.4-28.8 V DC)
Electronics supply current (no encoder)
≤ 0.20 A
Electronics supply current (with encoder)
≤ 0.35 A
Encoder supply voltage
5 V DC
Encoder supply current
0.35 A
SSI baud rate
100-250 kHz
Max. encoder frequency evaluated
≤ 500 kHz
Physical & Environmental
Weight
0.8 kg
Protection rating
IP20
Protective earth connection
Housing with M4 screw, 1.8 Nm torque
