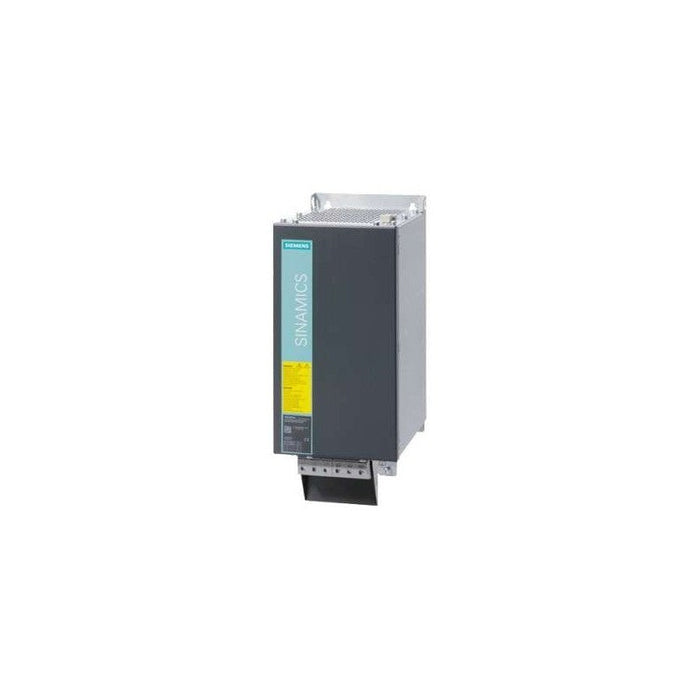

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3100-0BE25-5AB0 Siemens
Original price
$2,700.00
-
Original price
$4,375.00
Original price
$2,700.00
$2,700.00
-
$4,375.00
Current price
$2,700.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3100-0BE25-5AB0 is an Active Interface Module in book-size format from Siemens' SINAMICS S120 platform. It serves as an intermediary power interface module, supplying a 55 kW Active Line Module (ALM) with three-phase input power and providing the link for downstream drive components. The module handles line voltages from 380 to 480 V AC at 50/60 Hz and conditions power for high-power inverter units. Common uses include mid- to large-scale motor drive applications in industrial motion control systems.
Best Suited For
- Supplying 55 kW Active Line Modules within SINAMICS S120 drives
- Power interface in multi-motor or high-power drive installations
- Internal air-cooled book-size drive racks
- Industrial motion control systems requiring moduleized drive architecture
Line voltage
380 … 480 V AC 3 AC
Rated current
88 A
Power loss
0.38 kW
Net weight
23.2 kg
Technical Specifications
I/O & Electrical
Line voltage
380 … 480 V AC (3 AC)
Rated current
88 A
Current requirement at 24 V DC (electronics)
0.60 A
Communication & Power
Power loss
0.38 kW
Cooling air requirement
0.083 m³/s (2.93 ft³/s)
Sound pressure level (1 m)
66 dB
Physical & Environmental
Degree of protection
IP20 / UL open type
Cooling type
Internal air cooling
Dimensions (W×H×D)
200 mm × 380 mm × 270 mm
Net weight
23.2 kg (51.15 lb)
Certifications
cURusRoHSREACHWEEE
Compliance with cURus; RoHS and REACH restrictions noted by Siemens; WEEE take-back obligation.
