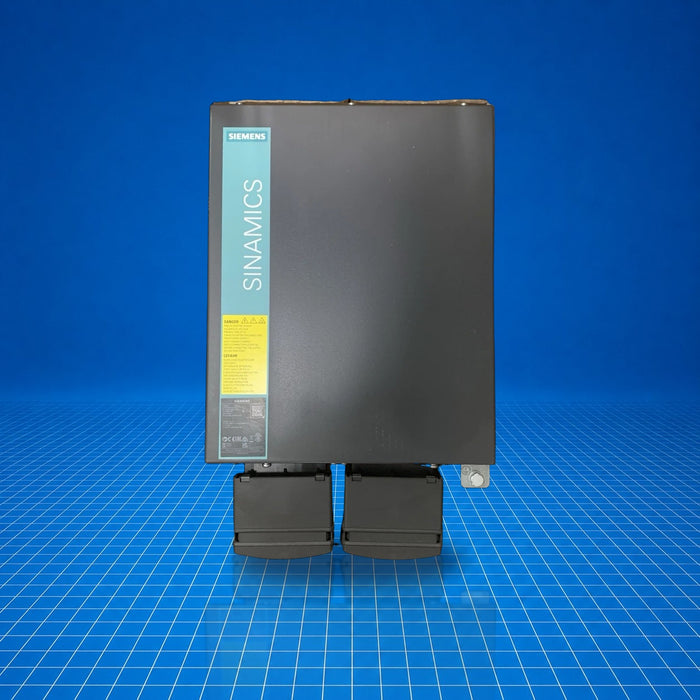

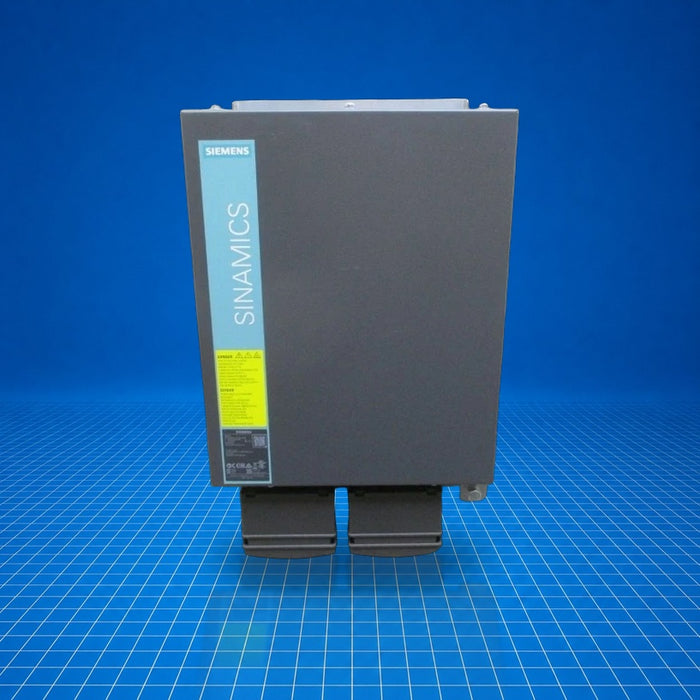

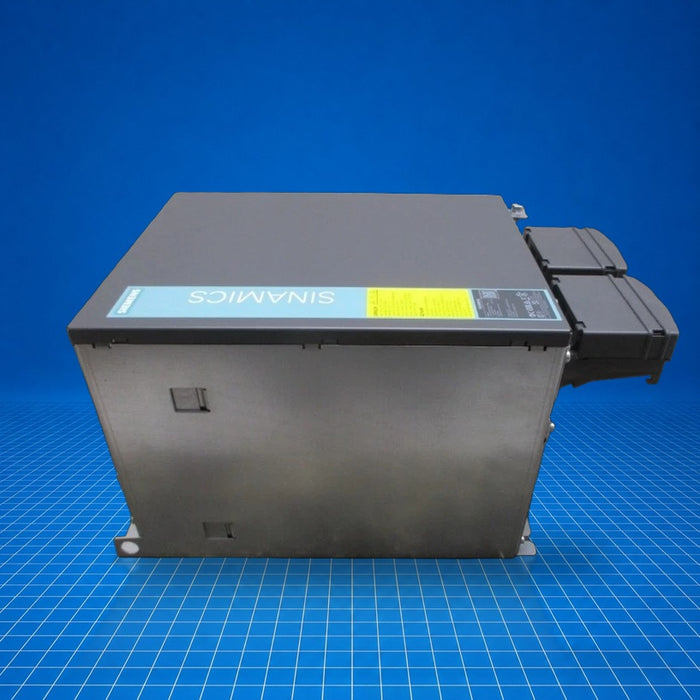

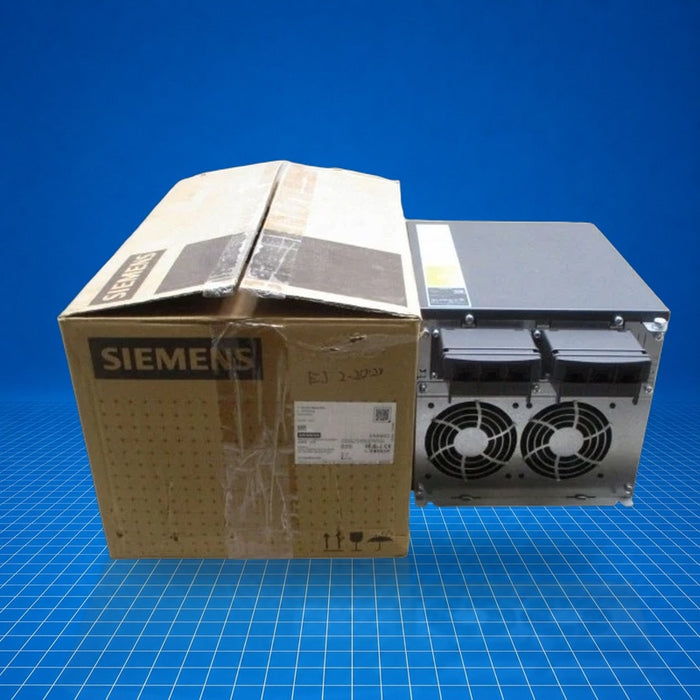

6SL3100-0BE28-0AB0 Siemens
Original price
$4,375.00
-
Original price
$6,750.00
Original price
$4,375.00
$4,375.00
-
$6,750.00
Current price
$4,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Number of phases | 3‑AC |
| Line voltage | 380 … 480 V AC |
| Rated input current | 128 A |
| 24 V DC electronics power supply requirement (max) | 1.20 A |
| Power loss | 0.490 kW |
| Sound pressure level (1 m) | 68 dB |
| Cooling air throughput | 0.167 m³/s (5.900 ft³/s) |
| Cooling type | Internal air cooling |
| Degree of protection | IP20 / UL open type |
| Construction type | Booksize |
| Net weight | 31.9 kg (70.33 lb) |
| Width | 300 mm (11.81 in) |
| Height | 380 mm (14.96 in) |
| Depth | 270 mm (10.63 in) |
| Conductor cross‑section | 2.5 … 120 mm² (AWG 14 … AWG ‑3) |
| Line side connection design | M8 bolt |
| Protective earth conductor connection | M8 screw |
The Siemens 6SL3100‑0BE28‑0AB0 is a high‑performance Sinamics S120 Active Interface Module, purpose‑built for 80 kW Active Line Modules. Accommodating a 3‑phase input of 380 – 480 V AC and delivering seamless integration via DRIVE‑CLiQ communication, this module ensures clean, efficient DC‑bus power for demanding automation and motion control systems. With robust internal air cooling, IP20 protection, and compact booksize construction, the 6SL3100‑0BE28‑0AB0 offers industrial‑grade reliability and is ideal for high‑duty applications in packaging, robotics, and production lines.
