6SL3100-1AE31-0AB0 Siemens
Original price
$799.52
-
Original price
$1,487.50
Original price
$799.52
$799.52
-
$1,487.50
Current price
$799.52
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

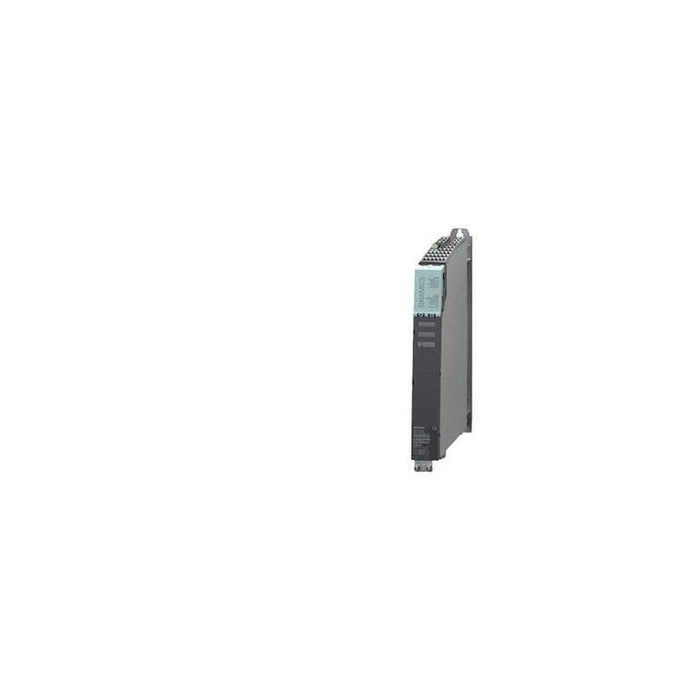

The 6SL3100-1AE31-0AB0 is a SINAMICS S120 braking module ("Booksize" format) from Siemens. It functions as a braking resistor interface for DC link energy dissipation in inverter systems. It integrates into SINAMICS S120 Combi or High Frequency drive setups, enabling controlled braking of motors and energy regeneration. Typical industrial uses include high-speed spindle control, conveyor braking, and deceleration in machining or packaging machinery. The module regulates energy absorption from the DC bus when kinetic energy is returned during deceleration.
Best Suited For
- SINAMICS S120 Combi drive systems
- Applications requiring DC-link energy braking
- Machinery with high dynamic deceleration (e.g. spindles, conveyors)
- Cabinet-mounted braking module implementations
DC-link voltage range
510 … 720 V DC
Activation (ON) threshold
770 V
Electronics supply voltage
24 V DC (20.4 … 28.8)
Continuous braking power
1.5 kW (100 kW max)
Cooling method
Natural convection
Technical Specifications
I/O & Electrical
DC-link voltage range
510 … 720 V DC
ON threshold
770 V
Electronics supply voltage
24 V DC (20.4 … 28.8)
Electronics current consumption
0.5 A DC
Continuous braking power
1.5 kW
Rated max braking power
100 kW
Power loss
20 W
Communication & Power
24 V busbar current capacity
20 A DC
DC-link busbar current capacity
100 A DC
Physical & Environmental
Cooling method
Natural convection
Ventilation clearance (above/below)
≥ 80 mm
Max ambient temperature
55 °C (no derating)
Weight
≈ 4.1 kg
Certifications
cURus
Complies with cURus safety standards.
