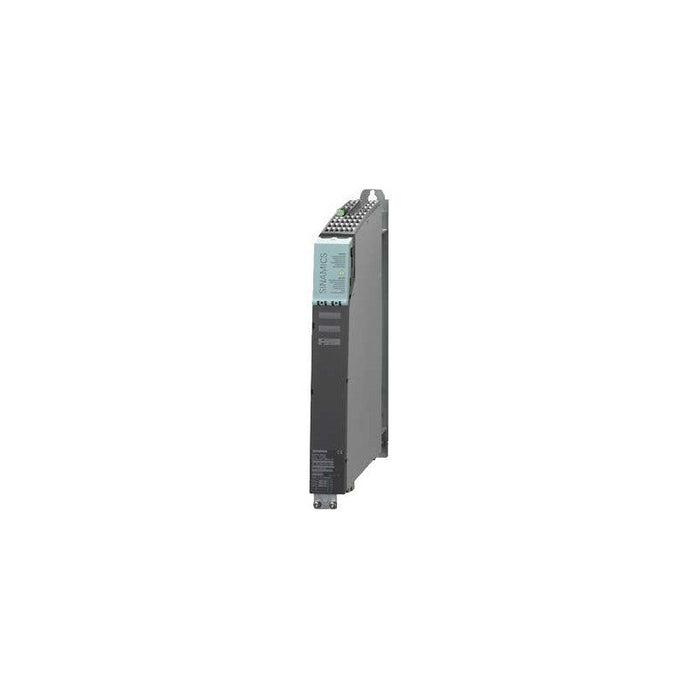

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6SL3100-1AE31-0AB1 Siemens

Name: 6SL3100-1AE31-0AB1 Siemens
Brand: Siemens
SKU: 6SL3100-1AE31-0AB1
Price: 687.5 USD
Availability: InStock

$687.50 - $2,378.93

$687.50

$687.50 - $2,378.93

$687.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6SL3100-1AE31-0AB1 is a SINAMICS 'book-size' braking module designed to dissipate DC link energy during emergency stops, power loss, or regenerative load conditions. It belongs to the SINAMICS S120 drive system platform and supports controlled deceleration by converting energy into heat via an external resistor. Frequently deployed in industrial motion control, machining centers, and high-torque inertia applications, the 6SL3100-1AE31-0AB1 enables safe stopping and DC link voltage regulation in SL120/S220 configurations. Part number 6SL3100-1AE31-0AB1 is used for ordering and specification reference.

Best Suited For

SINAMICS S120 motion control systems
Emergency stop (category 1) applications
Regenerative generator or DC-link voltage limiting
Rapid DC-link discharge
High-inertia axis drives

DC-link voltage range

510 … 720 V DC

Peak braking power

100 kW / 2 s

Continuous braking power

1.5 kW

Electronics supply current

0.5 A @ 24 V DC

Weight

4.1 kg (≈9 lb)

Technical Specifications

I/O & Electrical

DC-link voltage

510 … 720 V DC

DC-link capacitance

110 µF

Activation threshold (ON)

770 V

Digital inputs voltage

-3 V … +30 V

Digital inputs low level

-3 V … 5 V

Digital inputs high level

15 … 30 V

Digital inputs consumption typ.

10 mA

Digital outputs voltage

24 V DC

Digital outputs load current max.

100 mA

24 V DC busbars current capacity

20 A

DC-link busbars current capacity

100 A

Communication & Power

Electronics power supply

24 V DC (20.4 … 28.8 V)

Electronics current consumption

0.5 A (max.)

Physical & Environmental

Dimensions (W × H × D)

50 mm × 380 mm × 270 mm

Weight

4.1 kg (≈9 lb)

Cooling method

Natural convection

Ambient temperature max (without derating)

55 °C

Cable length to braking resistor, max.

10 m (32.81 ft)

Certifications

cURus

cURus listed
