6SL3130-6TE21-6AA4 Siemens
Original price
$962.50
-
Original price
$2,326.25
Original price
$962.50
$962.50
-
$2,326.25
Current price
$962.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

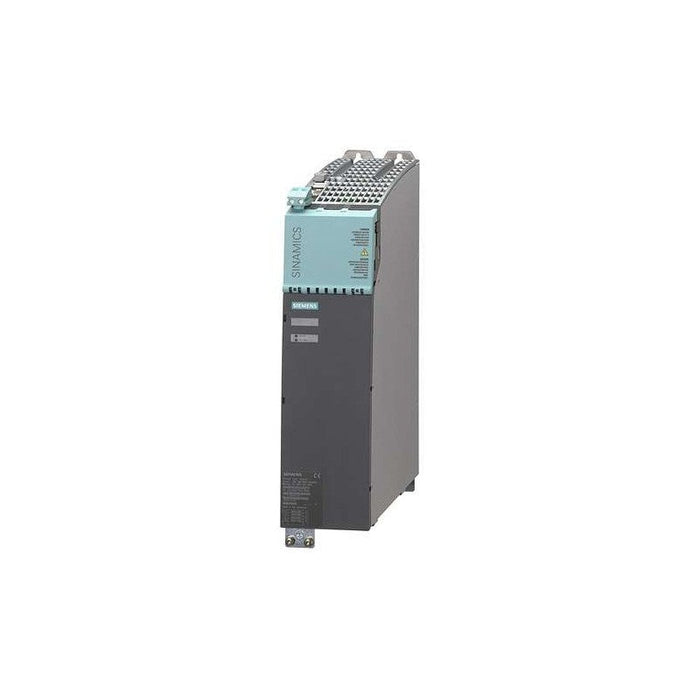

The Siemens 6SL3130-6TE21-6AA4 Smart Line Module, part of the SINAMICS S120 series, serves as an AC-to-DC module within a drive system. It converts 3-phase AC (380-480 V, 50/60 Hz) to a DC link (≈600 V) and provides up to 27 A (16 kW) continuous output. The module, in booksize form with internal air cooling and integrated DRIVE-CLiQ cable, is typically used in medium-power variable-speed drive applications such as conveyor systems, packaging machinery, and machine tools. 6SL3130-6TE21-6AA4 supports regenerative feedback and is designed for modular drive configurations.
Best Suited For
- SINAMICS S120 drive systems
- Applications requiring regenerative feedback
- Medium-power motor control (≈16 kW)
- On-machine booksize installation
Input voltage range
342-528 V AC (3-phase)
DC-link output
≈600 V DC, 27 A (16 kW) rated
Cooling type
Internal air cooling
Construction form
Booksize, IP20
Net weight
7.0 kg
Technical Specifications
I/O & Electrical
Number of phases
3 AC
Line voltage
342 ... 528 V
Line frequency
47 ... 63 Hz
Fundamental power factor, minimal
0.96
Total power factor
0.65 ... 0.90
DC-link voltage
1.35 × line voltage
Rated infeed power
16.0 kW (18.0 hp)
DC-link current @600 V
27.0 A
Input current @400 V AC
27.5 A
Current requirement @24 V DC
0.95 A max
Communication & Power
Electronics power supply
24 V (-15 % / 20 %)
Ampacity for 24 V busbars
20 A
Ampacity for DC-link busbars
100 A
DC-link capacitance (module)
710 µF
Power losses
0.190 kW
Physical & Environmental
Degree of protection
IP20 / UL open type
Dimensions W×H×D
100 mm × 380 mm × 270 mm
Net weight
7.0 kg (15.43 lb)
Sound pressure level
60 dB
Ambient temp, operation
0 ... 40 °C (32 ... 104 °F)
Cooling air throughput
0.016 m³/s (0.565 ft³/s)
Max installation altitude
1,000 m (3,280.84 ft)
Certifications
CEcULus
