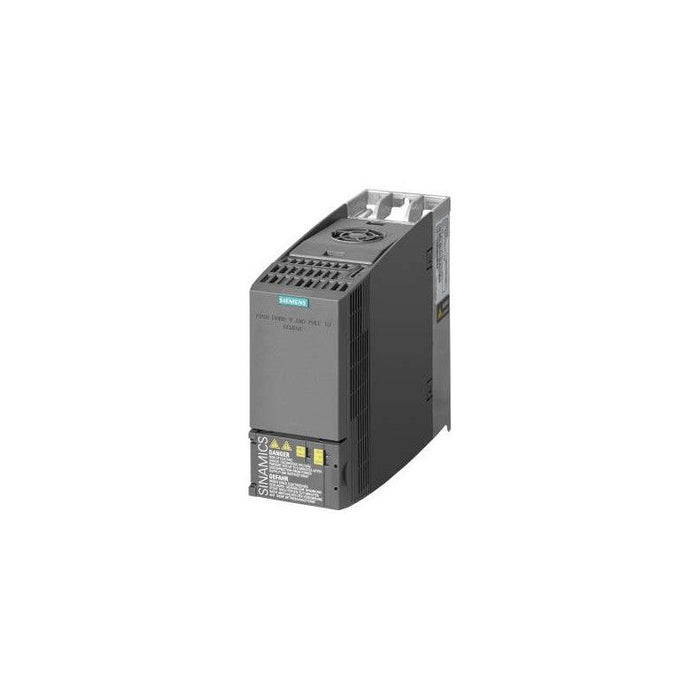

6SL3210-1KE11-8AF1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-1KE11-8AF1 is a SINAMICS G120C-2 inverter module (FSAA frame) rated 0.55 kW (low-overload), designed for three-phase 380-480 V AC (±10 %/-20 %) at 47-63 Hz. It integrates a class A EMI filter, Safe-Torque-Off function, and fieldbus interface (PROFINET). In a control system it functions as a compact AC motor drive, typically applied in machine tools, packaging, conveyor systems, or mill-duty auxiliaries requiring compact drive modules.
Best Suited For
- Compact machinery and conveyor systems
- OEM panels with limited space (FSAA frame)
- Applications requiring Safe-Torque-Off safety function
- Systems using PROFINET for automation integration
Rated power (low-overload)
0.55 kW
Line voltage range
380 - 480 V AC (+10 %/-20 %)
I/O (external 24 V)
6 DI, 2 DO, 1 AI, 1 AO, 1 Safe-Torque-Off
Fieldbus interface
PROFINET PN
Protection class
IP20 / UL open type
Technical Specifications
I/O & Electrical
Digital inputs
6 (24 V external)
Digital outputs
2 (24 V external)
Analog input
1 (24 V external)
Analog output
1 (24 V external)
Safe-Torque-Off
Integrated
Communication & Power
Fieldbus interface
PROFINET PN
Line voltage
380 - 480 V AC (+10 %/-20 %)
Line frequency
47 - 63 Hz
EMI filter
Integrated, Class A
Physical & Environmental
Degree of protection
IP20 / UL open type
Frame size
FSAA
Dimensions (H x W x D)
173 × 73 × 160 mm
Net weight
1.40 kg
Certifications
CEcULULKCEACC-Tick (RCM)
Complies with CE, cUL, UL, KC, EAC, C-Tick (RCM); CE marking per EMC Directive 2004/108/EC and Low-Voltage Directive 2006/95/EC.
