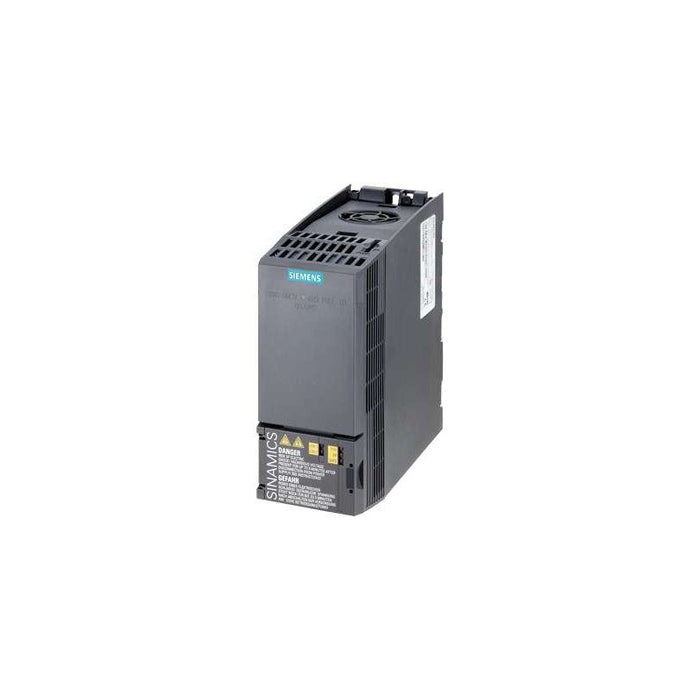

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-1KE11-8AF2 Siemens
Original price
$577.36
-
Original price
$2,810.25
Original price
$577.36
$577.36
-
$2,810.25
Current price
$577.36
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SINAMICS G120C compact converter model 6SL3210-1KE11-8AF2 is a three-phase variable-frequency drive designed for motor speed and torque control in industrial systems. It belongs to the SINAMICS G120C family and accepts 3AC 380-480 V +10%/-20%, 47-63 Hz. Integrated features include a class A mains filter, STO (Safe Torque Off), external 24 V I/O interface and PROFINET fieldbus. Typical uses include small machine automation, conveyor or pump control, and OEM panel integration. 6SL3210-1KE11-8AF2
Best Suited For
- Panel-mounted motor control under 0.6 kW
- PROFINET-integrated systems
- Applications requiring Safe Torque Off
- Compact machine tool or conveyor drive installation
Rated power (LO)
0.55 kW
Rated power (HO)
0.37 kW
Integrated filter class
A
I/O interface
6 DI, 2 DO, 1 AI, 1 AO
Technical Specifications
I/O & Electrical
Inputs - digital (DI)
6
Outputs - digital (DO)
2
Analog inputs (AI)
1 (differential, 10-bit resolution)
Analog outputs (AO)
1
Safe Torque Off inputs
1
Communication & Power
Line voltage
3 AC 380 … 480 V +10%/-20%
Line frequency
47 … 63 Hz
Rated current (LO)
1.70 A
Rated current (HO)
1.30 A
Max. output current
2.60 A
Pulse frequency
4 kHz
Efficiency (η)
0.97
Power loss
33.8 W
Communication interface
PROFINET
Physical & Environmental
Cooling
Air cooling via integrated fan
Operating temperature
-10 … 40 °C
Storage temperature
-25 … 55 °C
Transport temperature
-40 … 70 °C
Relative humidity
Max. 95 % at 40 °C, no condensation or icing
Degree of protection
IP20 / UL open type
Dimensions (W×H×D)
73 × 173 × 160 mm
Net weight
1.40 kg
Cooling air requirement
0.005 m³/s
Certifications
CEULcULKCEACC-Tick
Compliant with CE (EMC 2004/108/EC, LVD 2006/95/EC), UL, cUL, KC, EAC, C-Tick (RCM).
