6SL3210-1KE15-8AF1 Siemens
Sold out
Original price
$0.00
-
Original price
$2,240.50
Original price
$2,240.50
$0.00
-
$2,240.50
Current price
$2,240.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

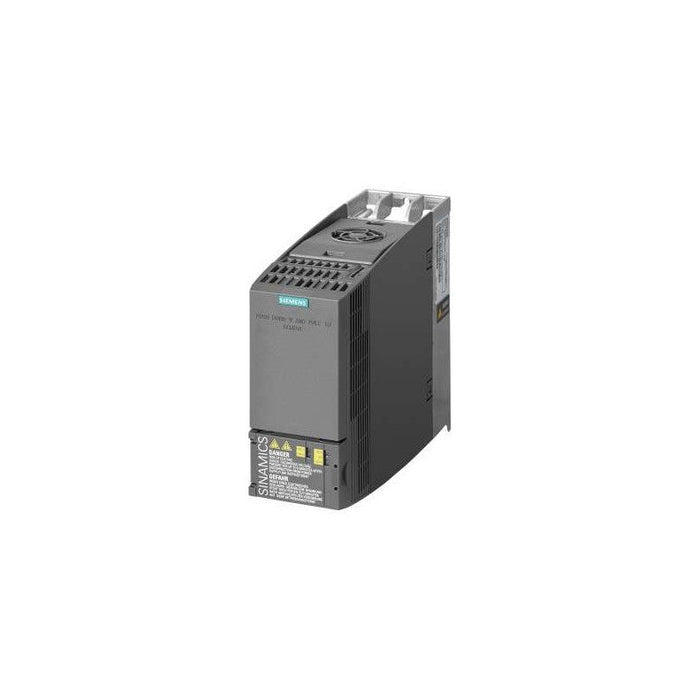

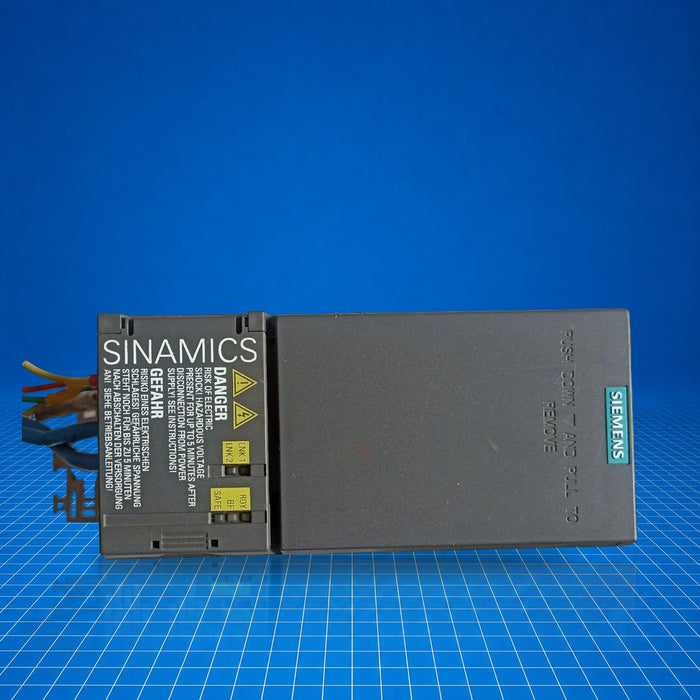

The Siemens 6SL3210-1KE15-8AF1 is a SINAMICS G120C-2 compact variable frequency drive (VFD) designed for three-phase motor control in the 2.2 kW power class. It supports external 24 V I/O, integrated safe torque off (STO), and fieldbus communication via PROFINET and EtherNet/IP. It is used in machine and conveyor applications, packaging and material handling systems, and as a spare part for existing G120C installations where footprint, drivetrain control, and I/O integration are required.
Best Suited For
- Machinery where 2.2 kW three-phase drives are required
- Controls systems requiring integrated STO safety function
- Installations using PROFINET or EtherNet/IP networks
- Maintenance/repair of SINAMICS G120C-2 systems
Rated output power
2.2 kW (150 % overload, 3 s)
Input voltage/frequency
3 AC 380-480 V +10 / -20 %, 47-63 Hz
I/O
6 DI, 2 DQ, 1 AI, 1 AQ, STO
Communication
PROFINET, EtherNet/IP
Protection/enclosure
IP20 / UL open type
Technical Specifications
I/O & Electrical
Standard digital inputs
6
Digital outputs
2 (1 relay, 1 transistor)
Analog input
1 (differential)
Analog output
1 (non-isolated)
Fail-safe input
1 (STO)
Switching level 0→1
11 V
Switching level 1→0
5 V
Analog resolution
10 bit
Max inrush current
15 mA
Analog input thresholds
0→1: 4 V; 1→0: 1.6 V
PTC/KTY motor temp sensor input
1, ±5 °C accuracy
Communication & Power
Communication protocols
PROFINET, EtherNet/IP
Line voltage
3 AC 380-480 V +10 / -20 %
Line frequency
47-63 Hz
Rated current (LO) input
7.40 A
Rated current (HO) input
6.00 A
Rated voltage output
400 V IEC / 480 V NEC
Rated power output LO
2.20 kW (3.00 hp)
Rated power output HO
1.50 kW (2.00 hp)
Output currents LO
5.60 A
Output currents HO
4.10 A
Rated current (IN)
5.80 A
Max output current
8.20 A
Pulse frequency
4 kHz
Output frequency vector control
0-240 Hz
Output frequency V/f control
0-550 Hz
Power factor λ
0.70-0.85
Offset factor cos φ
0.95
Efficiency η
0.97
Power loss
76.8 W
Integrated filter class
Class A
Physical & Environmental
Protection class
IP20 / UL open type
Dimensions (HxWxD)
196 × 73 × 225.4 mm
Net weight
2.300 kg
