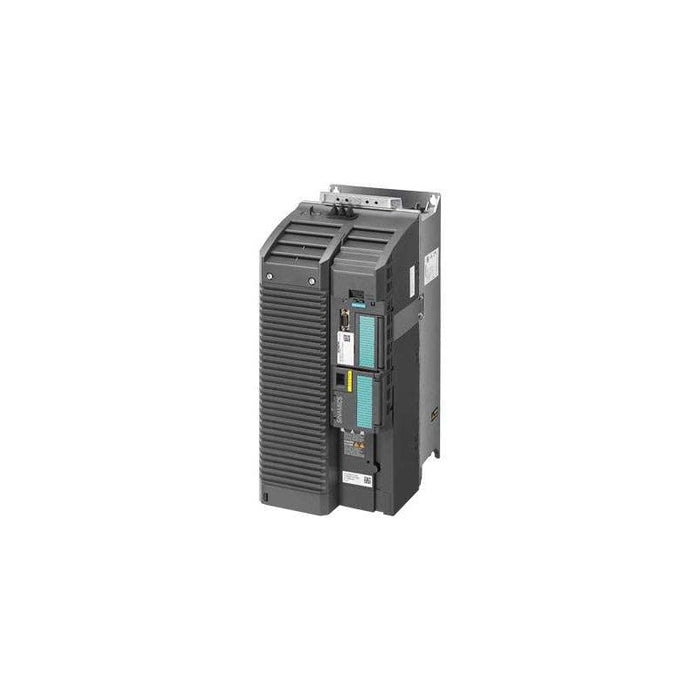

6SL3210-1KE24-4UF1 Siemens
Sold out
Original price
$0.00
-
Original price
$2,689.16
Original price
$2,689.16
$0.00
-
$2,689.16
Current price
$2,689.16
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-1KE24-4UF1 is a SINAMICS G120C compact converter module, part of the G120C platform. It serves as a three-phase AC drive designed to convert 380-480 V 3AC supply to controlled motor output for machine-level automation. It features fieldbus connectivity and integrated torque-off safety functionality. Typical applications include standalone machine drives, conveyor systems, packaging line motors, and general-purpose industrial motor control. The part number is used here for specification reference: 6SL3210-1KE24-4UF1.
Best Suited For
- Machinery drive control at 22 kW power level
- Systems requiring PROFINET or EtherNet/IP connectivity
- Installations needing integrated Safe Torque Off
- OEM machine tools and packaging equipment
Rated power
22 kW
Fieldbus interface
PROFINET, EtherNet/IP
Integrated safety
Safe-Torque-Off (STO)
Protection class
IP20 / UL open type
Technical Specifications
I/O & Electrical
Digital inputs
6 DI
Digital outputs
2 DO (1 relay + 1 transistor)
Analog input
1 (differential)
Analog output
1
Output (relay, resistive)
DC 30 V, 0.5 A
Communication & Power
Input voltage
380 … 480 V 3 AC +10 %/-20 %
Line frequency
47 … 63 Hz
Base-load current Iₗ
43 A
High-overload current Iₕ
37 A
Max output current
74 A
Pulse freq.
4 kHz
Efficiency η
0.98
Power loss
696 W
Physical & Environmental
Frame size
FSD
Dimensions (HxWxD)
472 × 200 × 237 mm
Net weight
19 kg
Sound pressure level (1 m)
72 dB
Certifications
RoHS compliant
