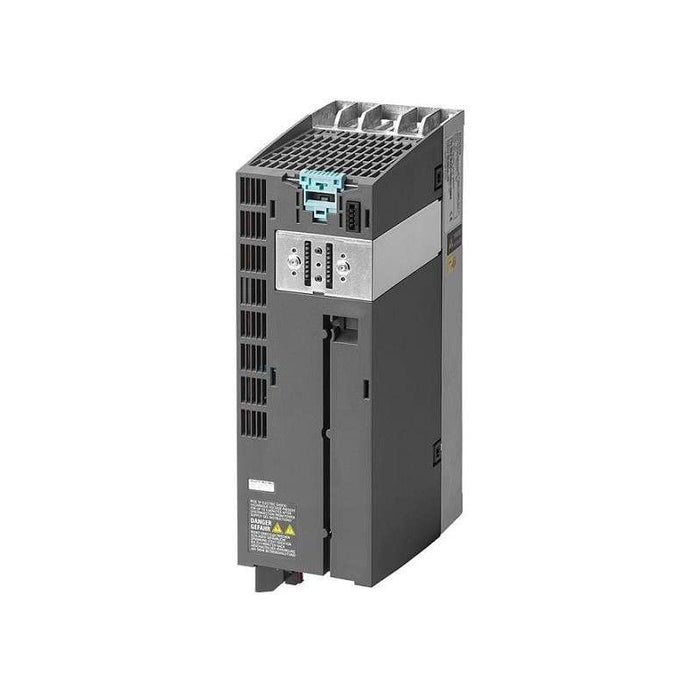

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-1PE16-1AL1 Siemens
Original price
$849.75
-
Original price
$2,812.50
Original price
$849.75
$849.75
-
$2,812.50
Current price
$849.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3210-1PE16-1AL1 is a SINAMICS G120 PM240-2 power module from Siemens, featuring an integrated Class A EMC filter and braking chopper. It operates from a three-phase 380-480 V AC ±10 % supply and delivers a nominal output power of 2.2 kW (based on rated current) or 1.5 kW (based on base-load), with peak currents of up to 8.9 A. Designed for installation within modular G120 systems, it is used for medium-duty motor control in applications such as machine tools, conveyors, and material handling systems. Part number: 6SL3210-1PE16-1AL1.
Best Suited For
- Modular SINAMICS G120 drive systems
- Integrated EMC filtering environments
- On-machine or cabinet mounting where braking capability is needed
- Medium-duty conveyor or motor control applications
Rated output
2.2 kW (based on Iₙ)
Base-load capability
1.5 kW (based on Iₕ)
Peak current
8.9 A
Line voltage
380-480 V AC ± 10 %
Technical Specifications
I/O & Electrical
Rated current (Iₙ)
5.9 A
Base-load current (Iₕ) for S6 (40 %) duty
4.1 A
Peak current (Iₘₐₓ)
8.9 A
Communication & Power
Line voltage
380 … 480 V AC ± 10 %
24 V DC supply for Control Unit input
1.0 A
Power loss
0.12 kW
Physical & Environmental
Dimensions (HxWxD)
196 × 73 × 165 mm (without operator panel)
Degree of protection
IP20
Cooling air requirement
5 l/s
Sound pressure level (1 m)
56.3 dB
Motor cable max length with filter
50 m shielded / 100 m unshielded
