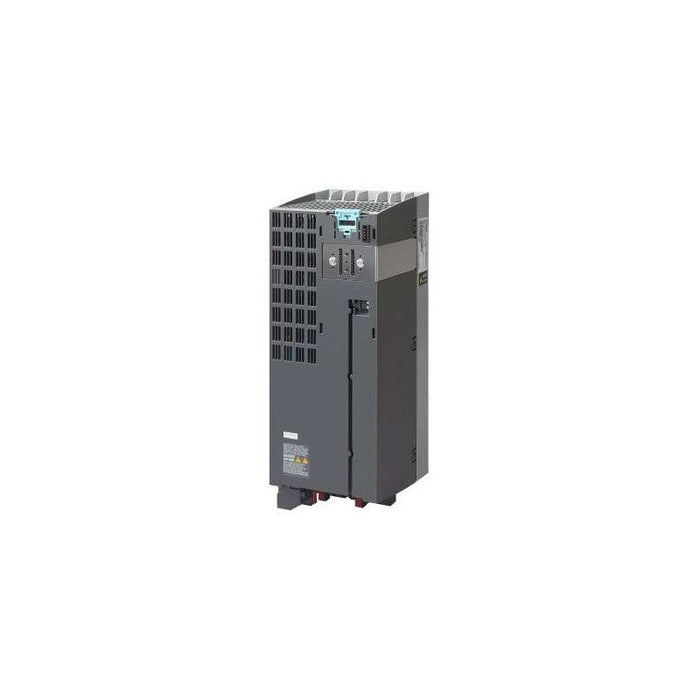

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6SL3210-1PE23-3AL0 Siemens

Name: 6SL3210-1PE23-3AL0 Siemens
Brand: Siemens
Price: 4252.5 USD
Availability: InStock

$3,042.00 - $4,252.50

$4,252.50

$3,042.00 - $4,252.50

$4,252.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (7) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6SL3210-1PE23-3AL0 is a SINAMICS G120 PM240-2 power module by Siemens. This AC drive power stage incorporates a class-A line filter and integrated braking chopper. It operates from a three-phase 380-480 V AC mains, supplying a nominal current of 32 A and providing overload capability for varied temporal duty cycles. The module serves as the power conversion interface in drive systems for motor control, supporting speed regulation, torque control, and braking in industrial automation systems. Typical applications include conveyor drives, packaging machinery, and factory automation systems.

Best Suited For

Installation in SINAMICS G120 drive systems requiring line filtering
Applications needing built-in braking resistor management
Three-phase motor control with nominal current ≈ 32 A
Environments compliant with IP20 enclosure requirements

Nominal current

32 A (at 400 V 3 AC, 50 Hz)

Integrated filter

Class A line filter

Braking chopper

Built-in

Enclosure rating

IP20

Dimensions (HxWxD)

355 × 140 × 165 mm

Technical Specifications

I/O & Electrical

Input voltage

3 AC 380-480 V +10/-10 %, 47-63 Hz

Rated (nominal) output current

32 A (at 400 V 3 AC, 50 Hz)

Overload output power (high overload)

11 kW for 200 % 3 s, 150 % 57 s, 100 % 240 s (-10 °C to +50 °C)

Overload output power (low overload)

15 kW for 150 % 3 s, 110 % 57 s, 100 % 240 s (-10 °C to +40 °C)

Communication & Power

Braking chopper

Built-in

Line filter

Class A (integrated)

Physical & Environmental

Dimensions (HxWxD)

355 × 140 × 165 mm

Protection class

IP20

Ambient temperature (high overload)

-10 °C to +50 °C

Ambient temperature (low overload)

-10 °C to +40 °C

Weight

5.400 kg
