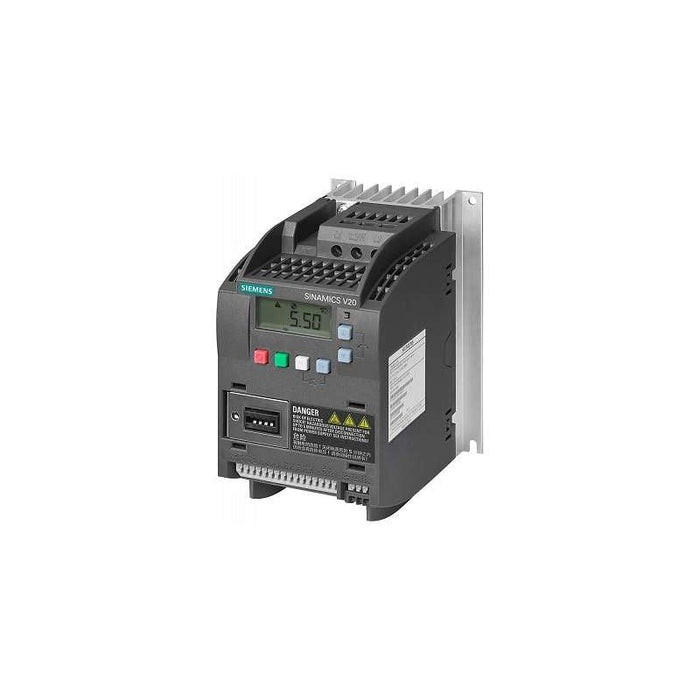

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU 6SL3210-5BB11-2UV0
6SL3210-5BB11-2UV0 Siemens
Original price
$505.26
-
Original price
$578.96
Original price
$505.26
$505.26
-
$578.96
Current price
$505.26
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3210-5BB11-2UV0 is a SINAMICS V20 single-phase AC drive within Siemens' basic converter series. It converts 200-240 V AC (±10 %) input into three-phase output up to 0.12 kW (0.16 hp), providing speed control for small motors in general-purpose industrial applications. The drive includes integrated I/O and supports USS and Modbus RTU communication, suitable for conveyor systems, pumps, fans, packaging machines, and basic motion control tasks.
Best Suited For
- Small single-phase motor speed control
- OEM panel incorporation
- Conveyor, pump, fan applications
- Basic Modbus or USS network integration
Rated output power
0.12 kW
Input voltage
200-240 V AC ±10 %
Digital inputs
4
Communication protocols
USS, Modbus RTU
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Rated output power
0.12 kW
Rated output current
0.9 A
Rated input current
2.3 A
Line voltage range
200 ... 240 V AC -10 %/+10 %
Line frequency
47 ... 63 Hz
Digital inputs
4
Digital outputs
1 relay changeover + 1 transistor
Analog inputs
2 (can double as digital)
Analog outputs
1
Communication & Power
Communication protocols
USS, Modbus RTU
Overload capability
150 % rated current for 60 s (cycle time 300 s)
Physical & Environmental
Frame size
FSAA
Mounting
Wall or side-by-side
Protection rating
IP20 / UL open type
Ambient temperature, operation
-10 ... 60 °C (14 ... 140 °F)
Ambient temperature, storage
-40 ... 70 °C (-40 ... 158 °F)
Relative humidity
Up to 95 % non-condensing
Max. motor cable length (shielded)
25 m
Max. motor cable length (unshielded)
50 m
Dimensions (W×H×D)
90 × 150 × 146 mm (3.54 × 5.91 × 5.73 in)
Net weight
1.00 kg (2.20 lb)
Cooling
Convection
Certifications
CEcULusC-TickKC
Compliance with CE, cULus, C-Tick (RCM), KC standards (EN 61800-5-1, EN 60204-1, EN 61800-3).
