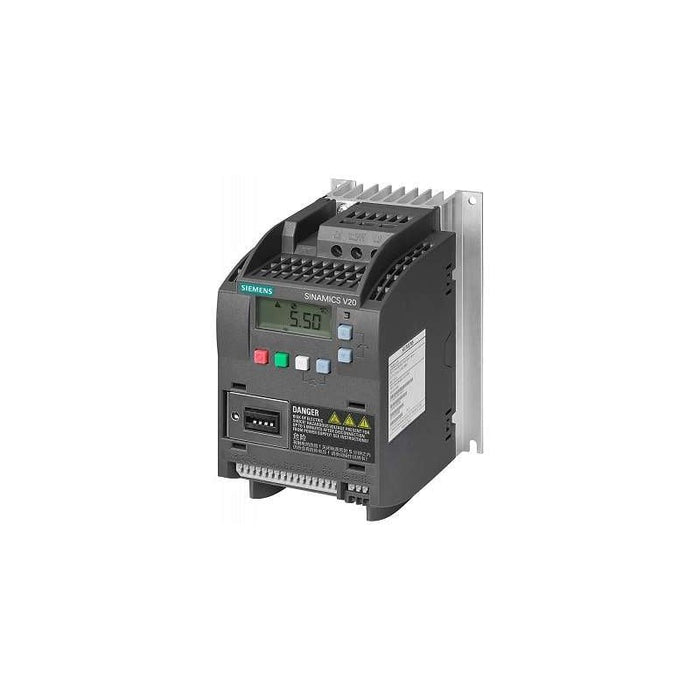

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-5BB13-7AV0 Siemens
Original price
$500.00
-
Original price
$679.25
Original price
$500.00
$500.00
-
$679.25
Current price
$500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SINAMICS V20 inverter, part number 6SL3210-5BB13-7AV0, is a single-phase AC variable-frequency drive in Siemens' V20 family. It accepts 200-240 V AC input and delivers up to 0.37 kW output for motor control. It provides integrated filter functionality (type C2) and a built-in basic operator panel. The device offers both USS and Modbus RTU communication and is suitable for general-purpose drive applications requiring compact, panel-mounted control.
Best Suited For
- Controlling small single-phase motors up to 0.37 kW
- Replacing legacy single-phase motor starters in machine tools
- Applications requiring built-in fieldbus (USS/Modbus RTU)
- Panel-mount installations in IP20 environments
- Compact variable-speed control on conveyor systems
Rated power
0.37 kW
Input voltage
200 ... 240 V AC -10 %/+10 %
Fieldbus
USS, Modbus RTU
I/O
4 DI, 2 DO, 2 AI, 1 AO
Protection rating
IP20
Technical Specifications
I/O & Electrical
Digital inputs
4
Digital outputs
2 (1 relay, 1 transistor)
Analog inputs
2
Analog outputs
1
Communication & Power
Input voltage
200 ... 240 V AC -10 %/+10 %
Line frequency
47 ... 63 Hz
Rated input current
6.2 A (frame size A, unfiltered)
Fieldbus protocols
USS, Modbus RTU
Physical & Environmental
Operating temperature
-10 ... 60 °C
Storage temperature
-40 ... 70 °C
Relative humidity (max, operation)
95 %
Motor cable length, shielded
10 m
Motor cable length, unshielded
50 m
Mounting
Wall mounting / side-by-side
Degree of protection
IP20 / UL open type
Frame size
FSA
Dimensions (W×H×D)
90.0 × 150.0 × 145.5 mm
Net weight
1.10 kg (2.43 lb)
Certifications
CEcULusC-Tick (RCM)KC
Complies with CE, cULus, C-Tick (RCM), KC; CE marking per EN 61800-5-1, EN 60204-1 and EN 61800-3.
